Air Cleaner Element Replacement

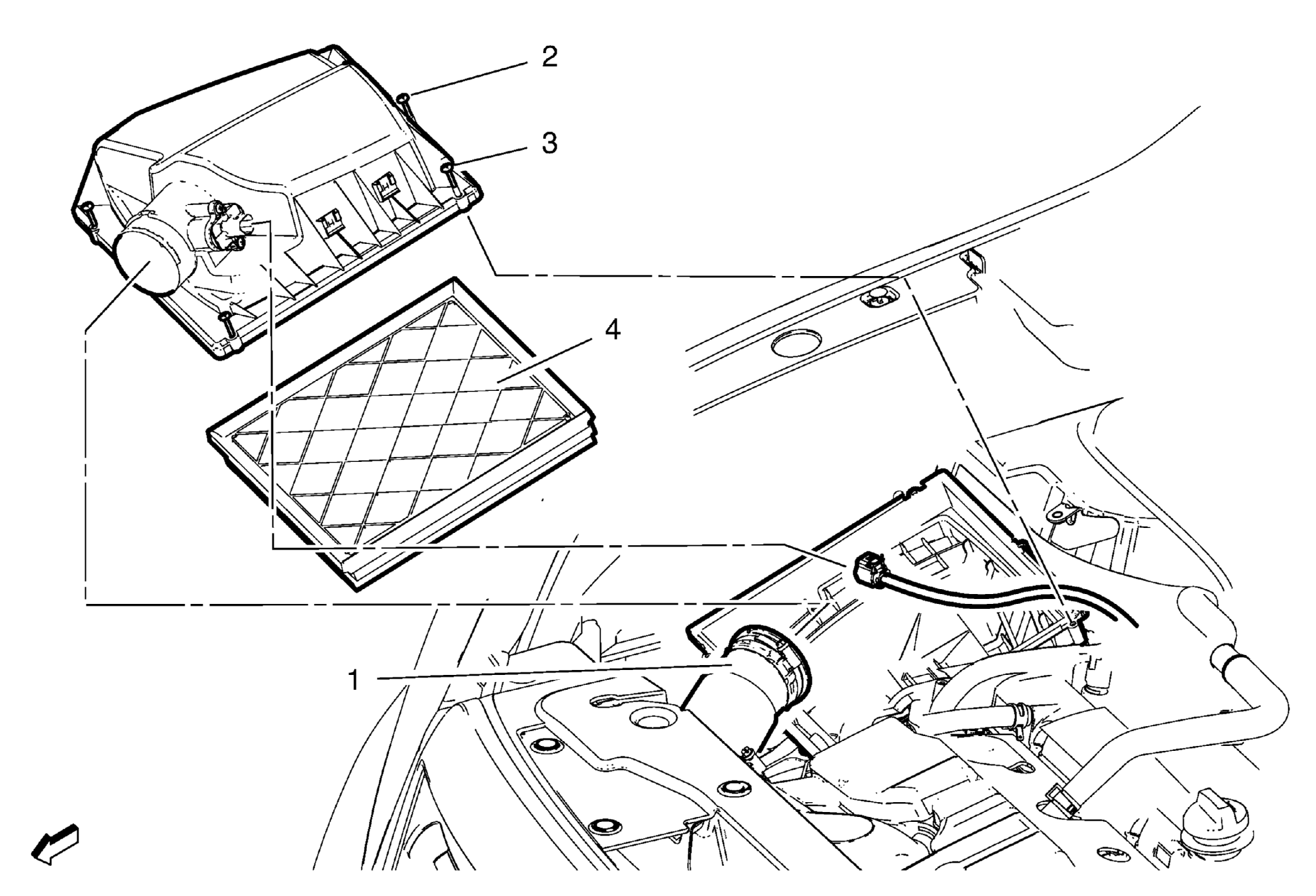

Fig 1: Air Cleaner Element, Outlet Duct, Housing Cover & Bolts
GM2549923Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Element Replacement

Callout Component Name
1 Air Cleaner Outlet Duct
2 Air Cleaner Housing Cover Bolt (Qty: 6)
CAUTION:

Refer to Fastener Caution .
3 Air Cleaner Housing Cover
Procedure
Disconnect the mass air flow sensor electrical connector.
4 Air Cleaner Element
