Air Cleaner Inlet Duct and Resonator Replacement

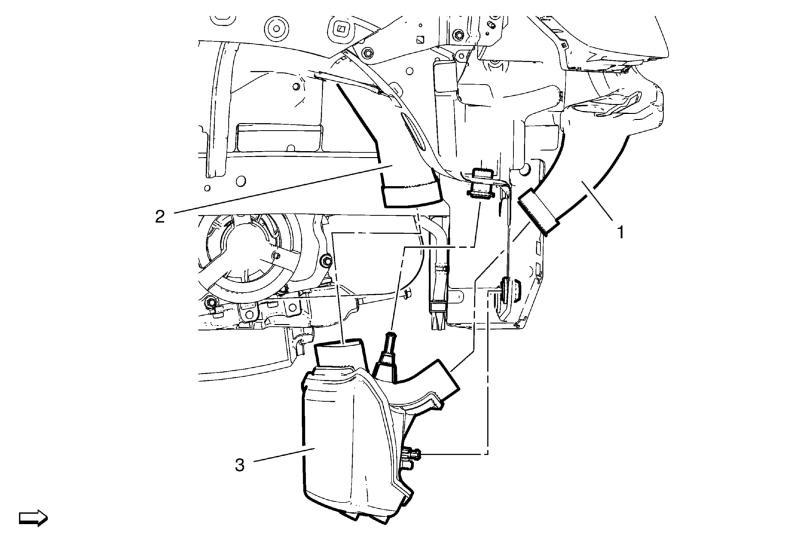

Fig 1: Air Cleaner Inlet Duct & Resonator

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Inlet Duct and Resonator Replacement

Callout	Component Name
Preliminary Procedures  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Intake Air Duct
2	Air Cleaner Adapter
3	Air Cleaner Inlet Duct And Resonator
