Camshaft Position Sensor Replacement - Intake

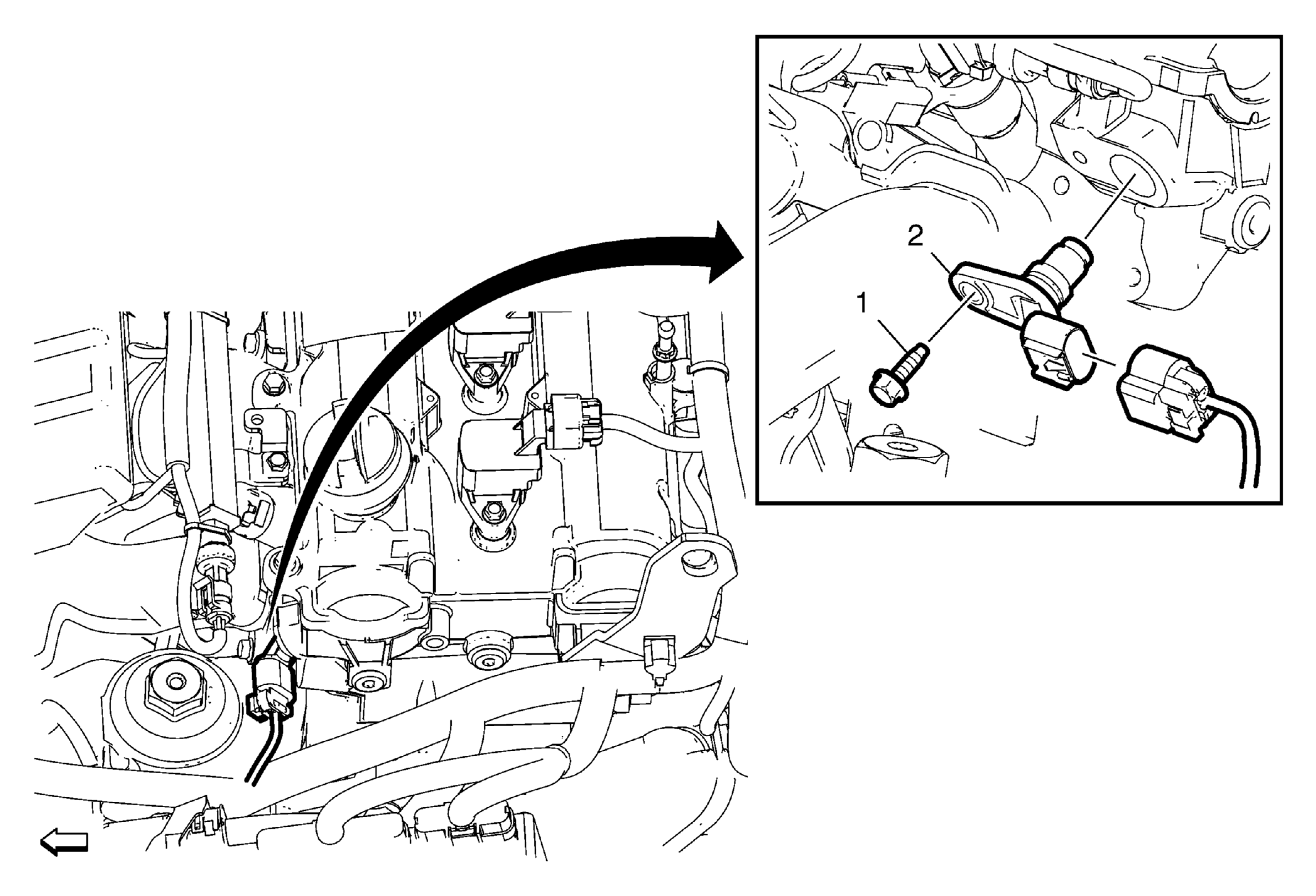

Fig 1: Intake Camshaft Position Sensor & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the fuel feed intermediate pipe. Refer to Fuel Feed Intermediate Pipe Replacement .
1	Intake Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Intake Camshaft Position Sensor Procedure Disconnect the electrical connector. Use a NEW seal ring.

Callout

Component Name

Preliminary Procedures

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove the fuel feed intermediate pipe. Refer to Fuel Feed Intermediate Pipe Replacement .

Intake Camshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Intake Camshaft Position Sensor

Procedure
