Crankshaft Position Sensor Replacement

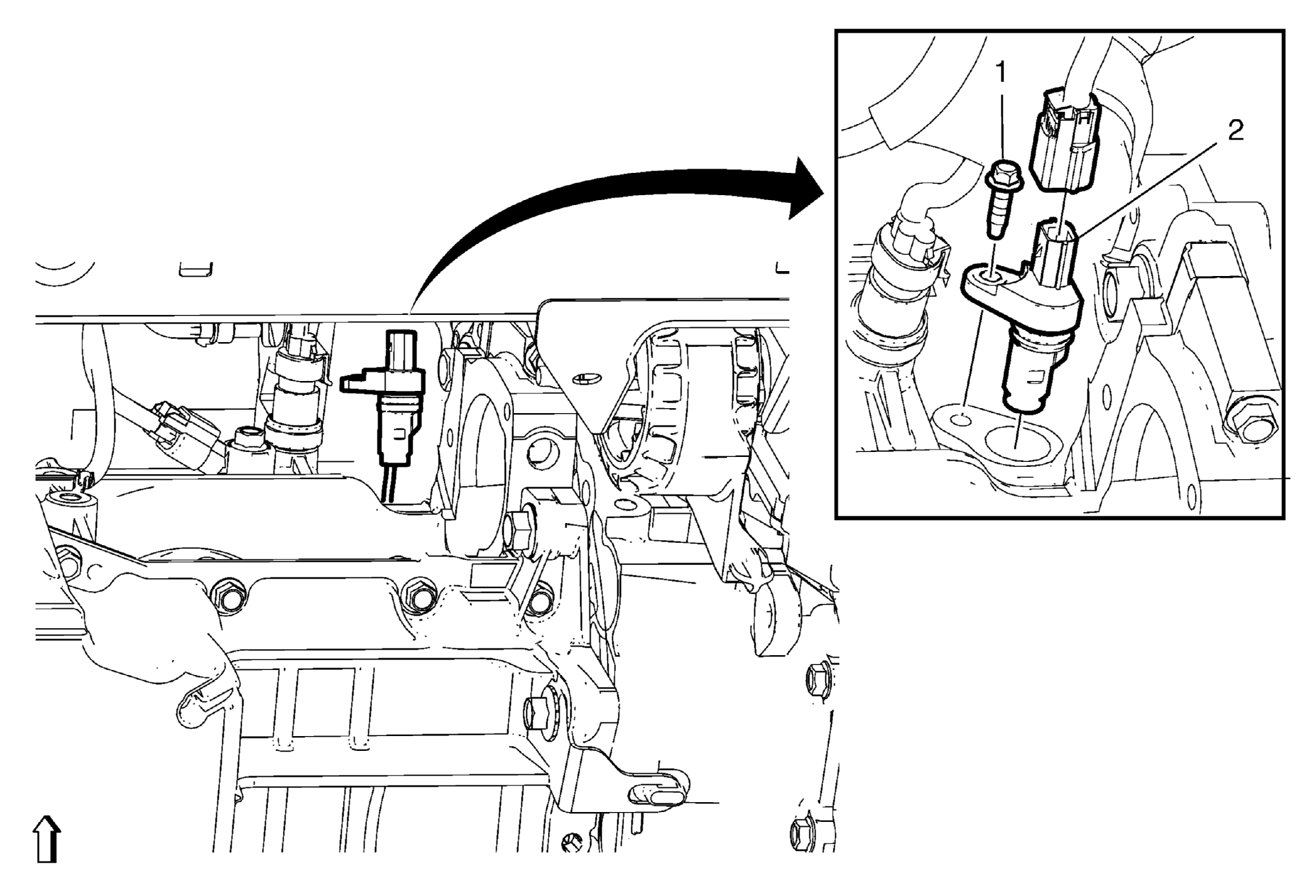

Fig 1: Crankshaft Position Sensor & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the starter. Refer to Starter Replacement .
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor Procedure Disconnect the electrical connector.
