Fuel Feed Intermediate Pipe Replacement

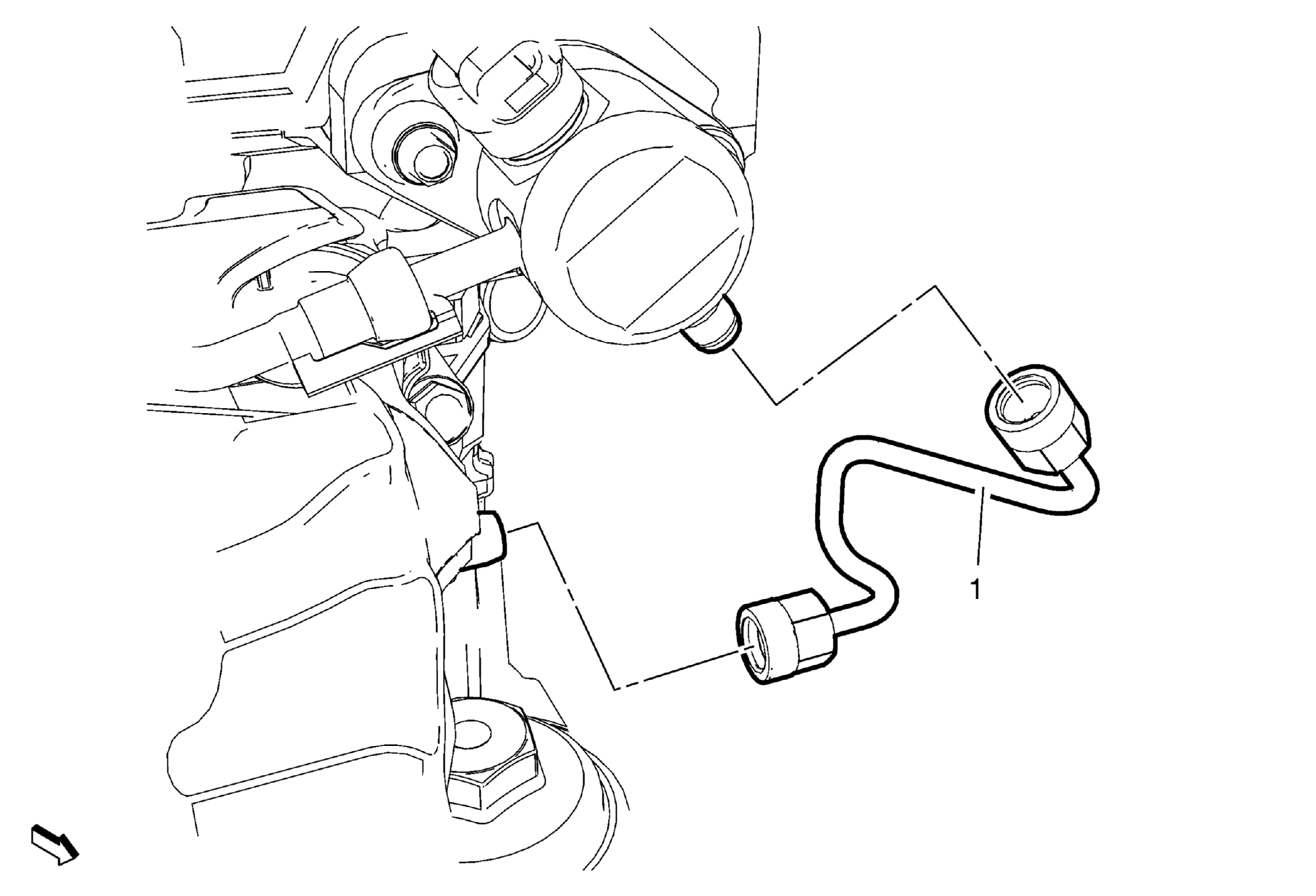

Fig 1: Fuel Feed Intermediate Pipe
GM2594985Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Intermediate Pipe Replacement

Callout Component Name
Preliminary Procedures
Remove the fuel pump cover and the fuel pump insulator. Refer to Fuel Pump Replacement .
1 Fuel Feed Intermediate Pipe
CAUTION:

Refer to Fastener Caution .

NOTE:

PART MUST BE REPLACED ONCE REMOVED


Tighten
28 N.m (21 lb ft)
