Installation Procedure

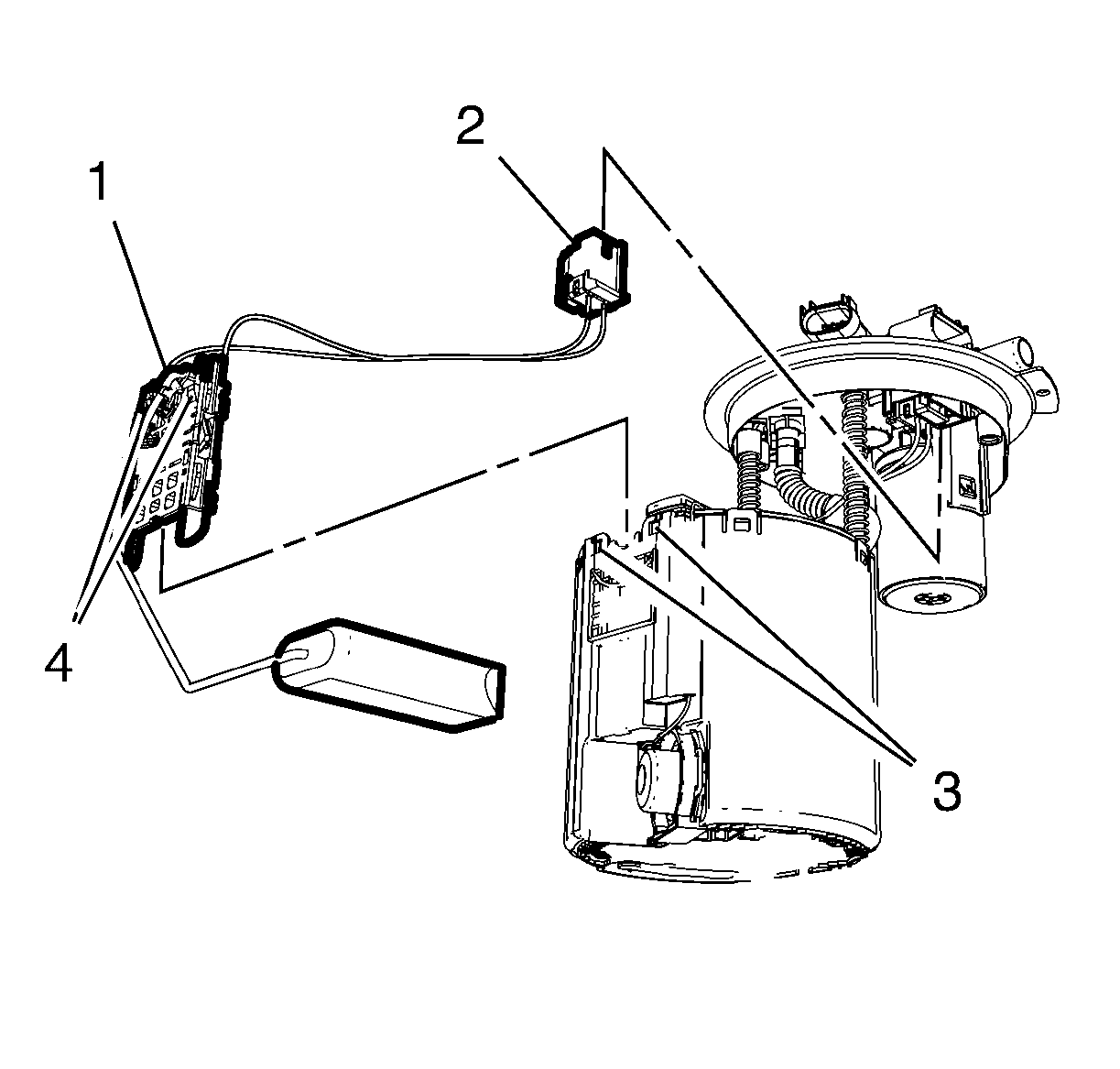

    Fig 1: Fuel Level Sensor & Components
    GM2699349Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel level sensor (1) to the fuel tank fuel pump module.
  2. The fuel level sensor retainer pins (4) must engage audible in the fuel level sensor retainer pin holes (3).
  3. Connect the fuel level sensor wiring harness plug (2) to the fuel tank fuel pump module.
  4. Install the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
