Installation Procedure

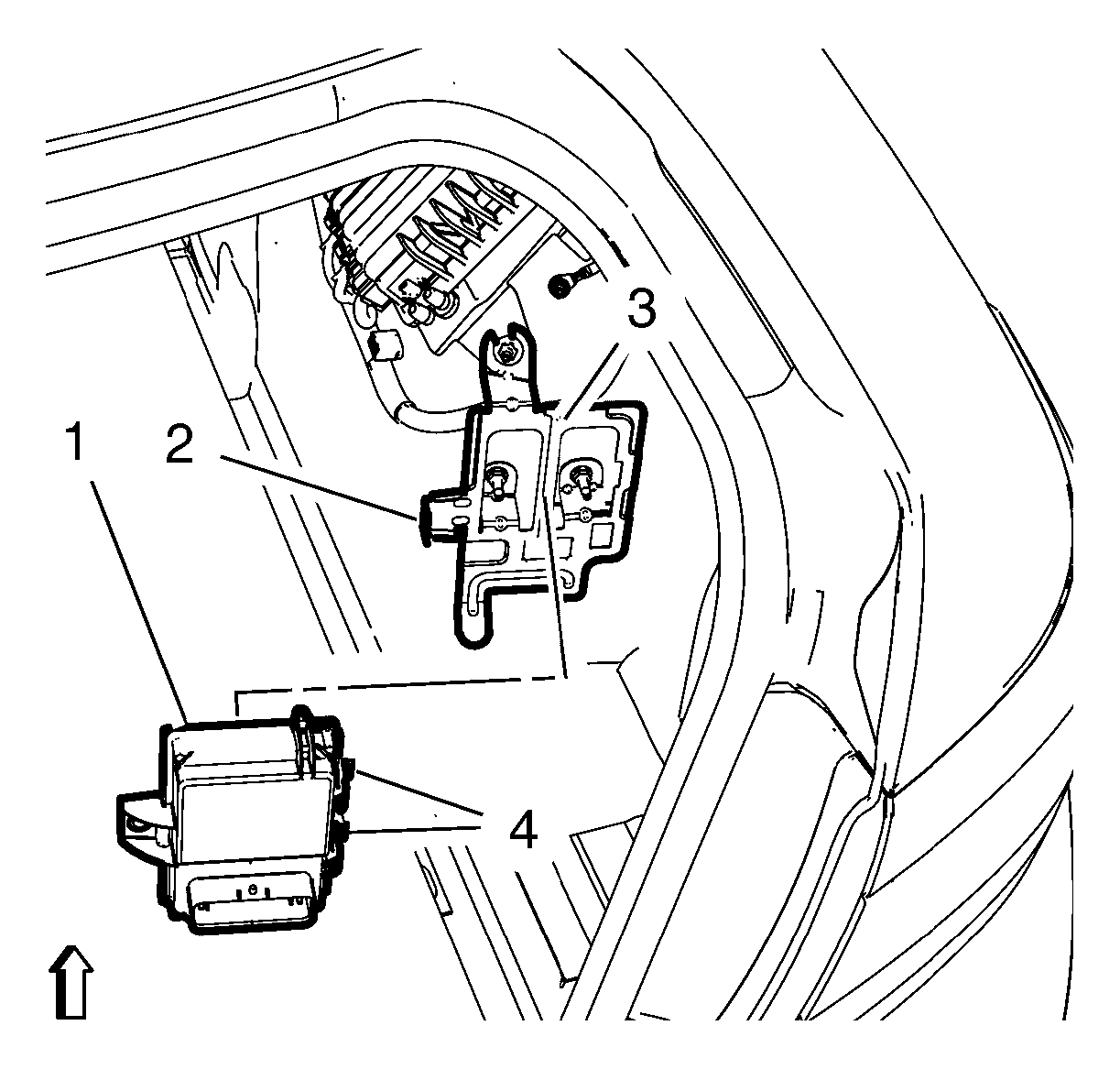

Fig 1: Fuel Pump Flow Control Module, Bracket & Clips

Courtesy of GENERAL MOTORS COMPANY

Clip the 2 fuel pump flow control module clips (4) to the fuel pump flow control module bracket (3).
Clip the fuel pump flow control module bracket clip (2) to the fuel pump flow control module (1).

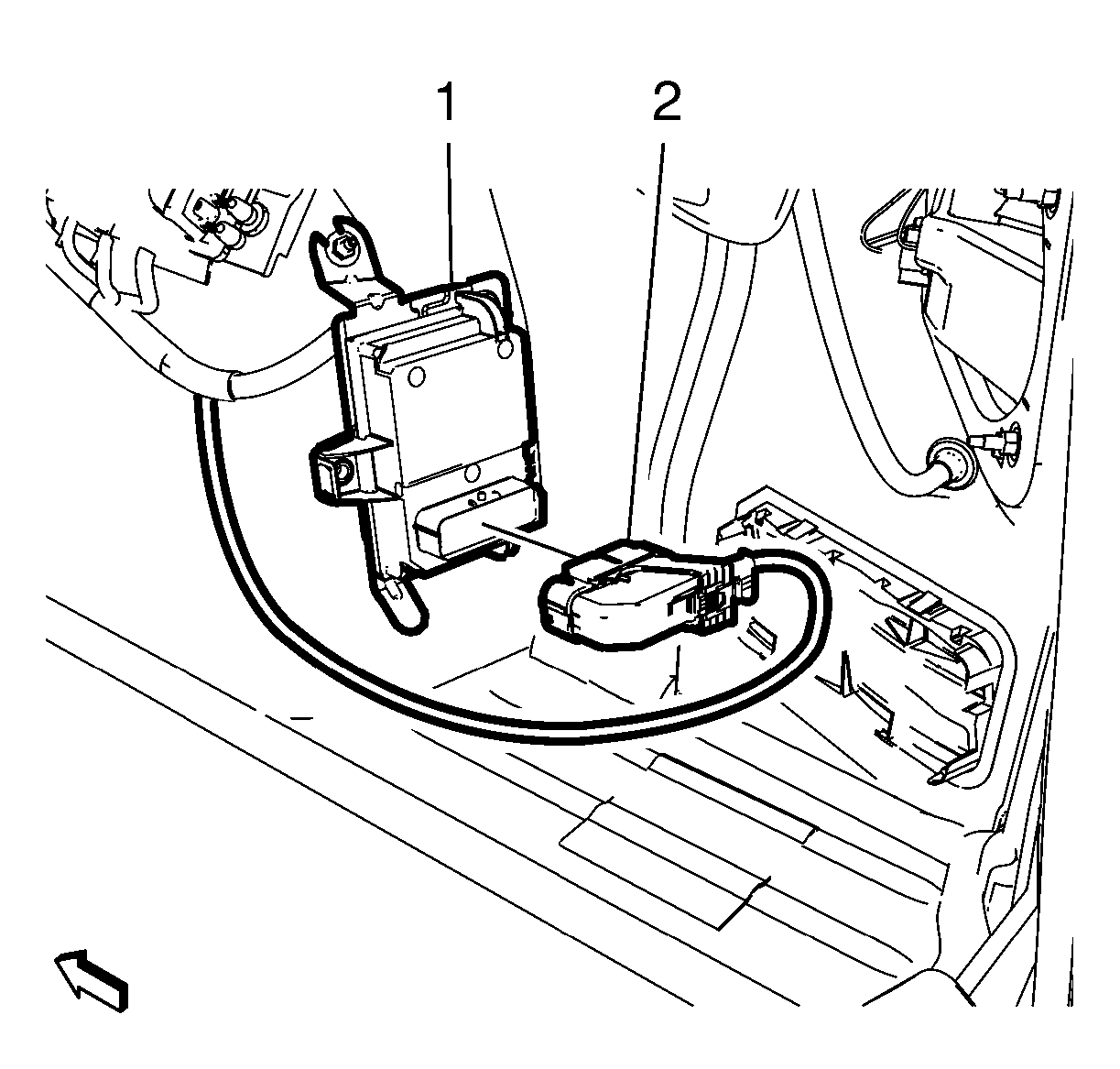

Fig 2: Fuel Pump Flow Control Module & Wiring Harness Plug

Courtesy of GENERAL MOTORS COMPANY

Plug the fuel pump flow control module wiring harness plug (2) to the fuel pump flow control module (1).
Install the rear compartment side trim - right side. Refer to Rear Compartment Side Trim Replacement - Right Side .
Program the control module. Refer to Fuel Pump Flow Control Module Programming and Setup .
