Installation Procedure

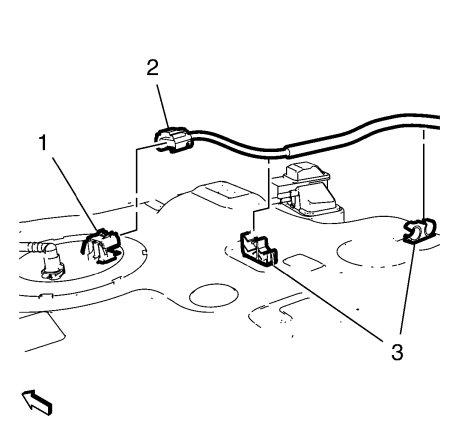

Fig 1: Fuel Tank Fuel Pump Module, Wiring Harness Plug & Bracket Clips

Courtesy of GENERAL MOTORS COMPANY

NOTE:

A second technician is required.

Extend the jack stepwise, until you can install the fuel tank fuel pump module wiring harness plug (2).
Connect the fuel tank fuel pump module wiring harness plug (2) to the fuel tank fuel pump module (1).
Clip the fuel tank fuel pump module wire into the 2 bracket clips (3).

NOTE:

Extend the jack.

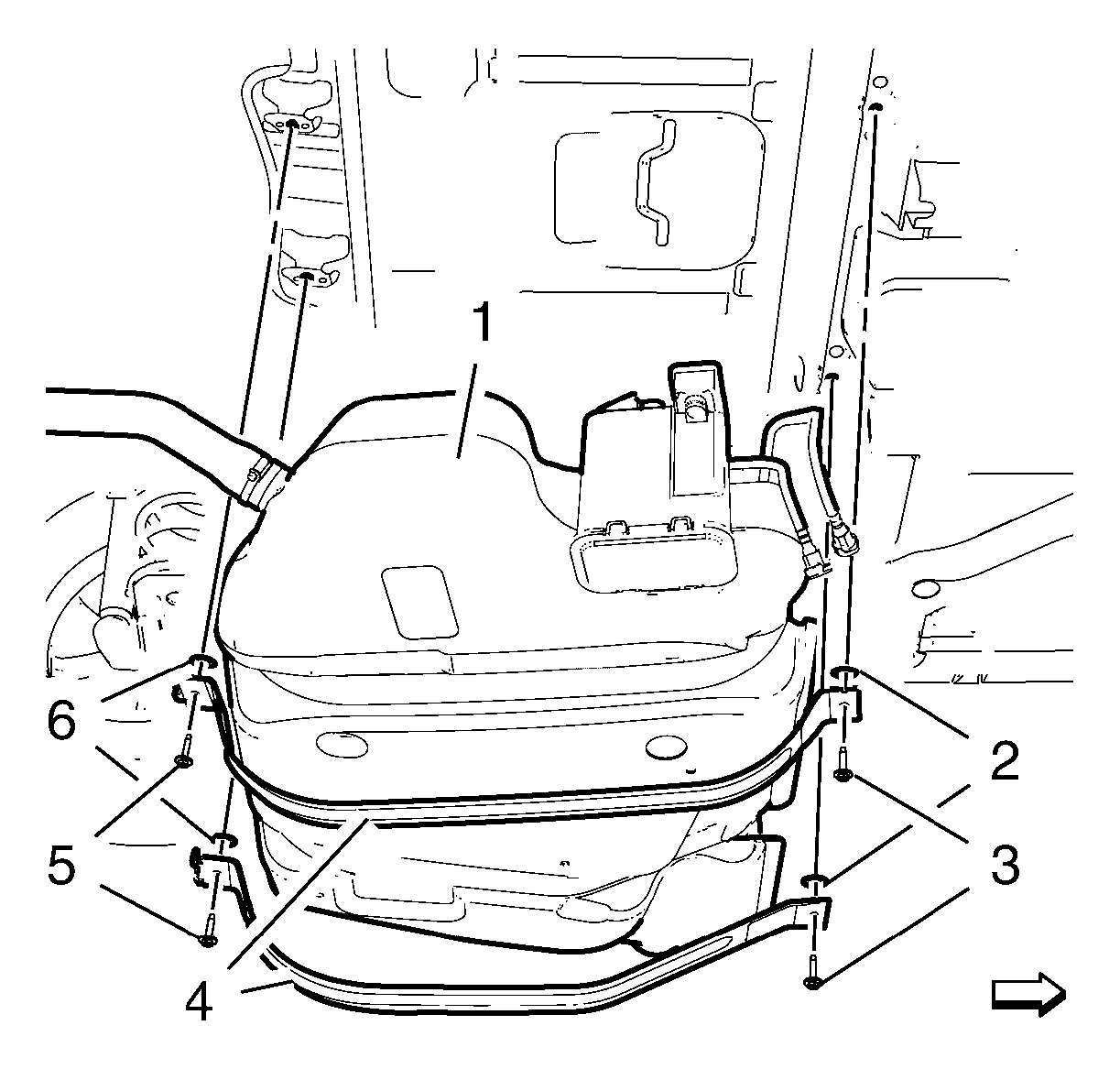

Fig 2: Fuel Tank, Strap & Bolts

Courtesy of GENERAL MOTORS COMPANY

Pre-install the 4 fuel tank strap bolts (3, 5) with the fuel tank strap bolt retainers (2, 6) at the fuel tank straps (4).
Mount the 2 fuel tank straps (4).

CAUTION:

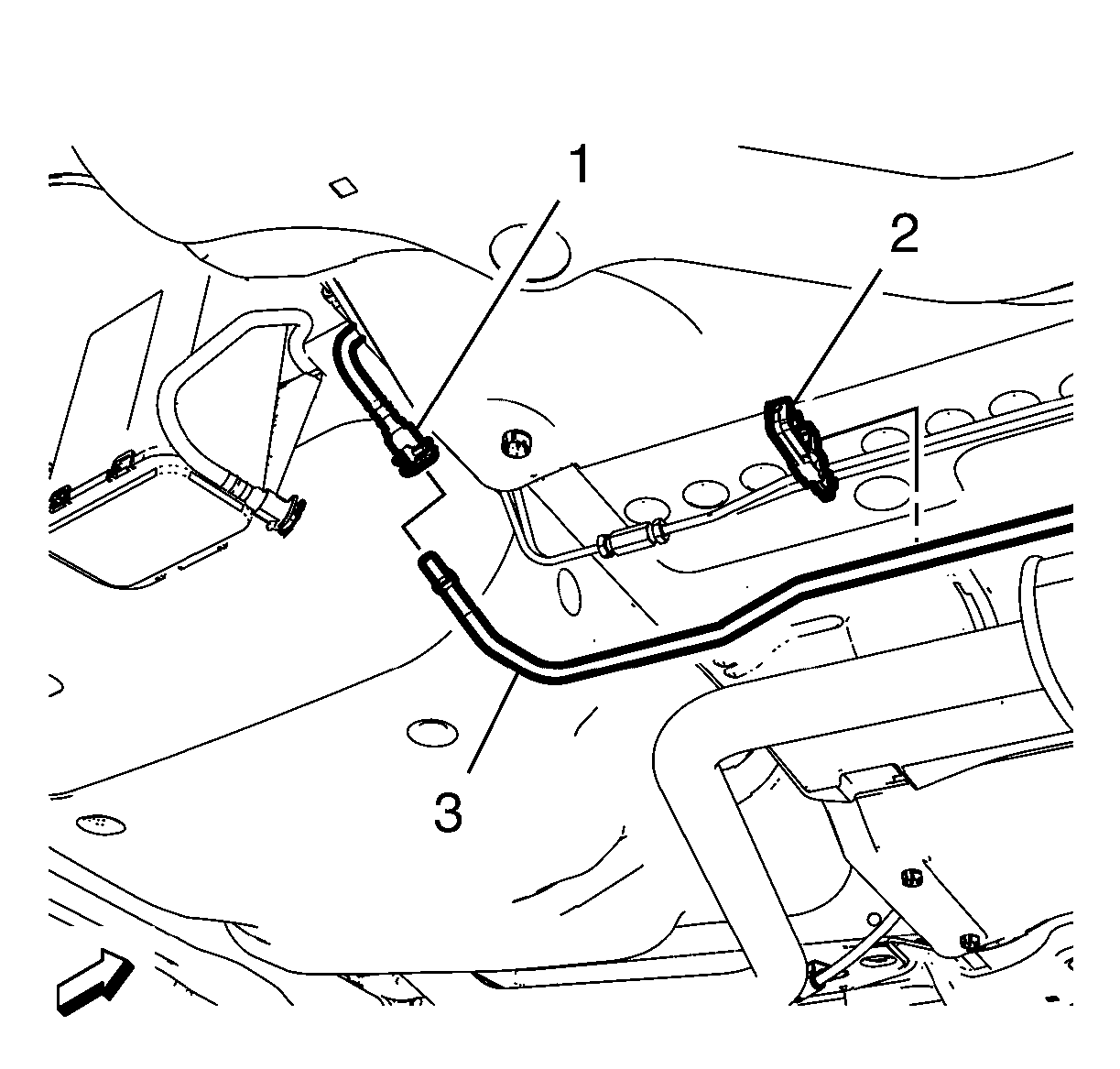

Fig 3: Evaporative Emission Canister Fuel Vent Pipe, Connector & Rear Bracket Clip

Courtesy of GENERAL MOTORS COMPANY

Remove the EN-6015 plugs from the emission canister fuel vent pipe and the fuel tank vent pipe.
Connect the emission canister fuel vent pipe (1) to the fuel tank vent pipe (3). Refer to Plastic Collar Quick Connect Fitting Service .
Clip the fuel vent pipe (3) into the rear bracket clip (2).

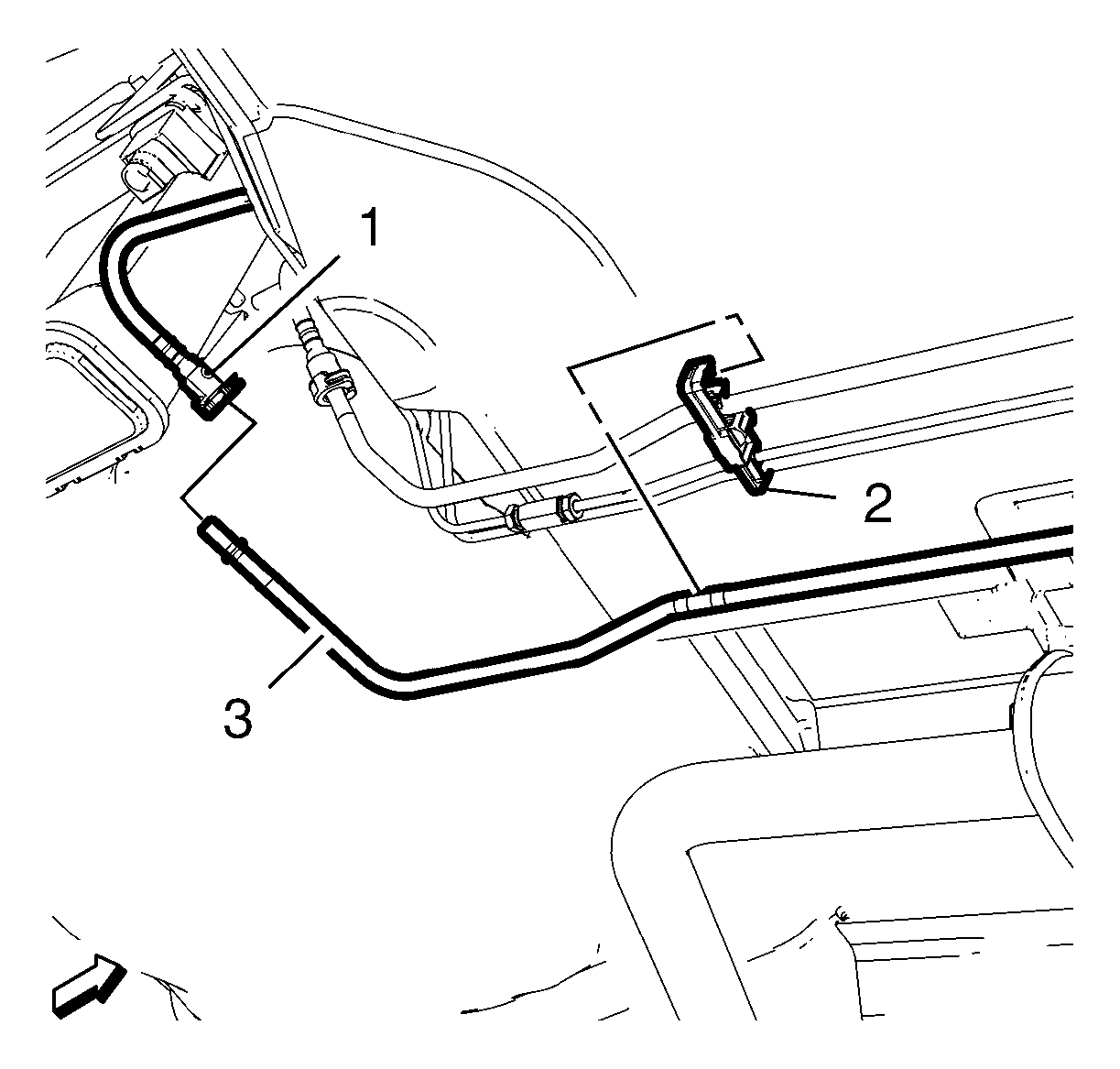

Fig 4: Fuel Feed Pipe, Connector & Rear Bracket Clip

Courtesy of GENERAL MOTORS COMPANY

Remove the EN-6015 plugs from the fuel feed tank pipe and the fuel feed pipe.
Connect the fuel tank feed pipe connector (1) to the fuel feed pipe (3). Refer to Plastic Collar Quick Connect Fitting Service .
Clip the fuel feed pipe into the rear bracket clip (2).

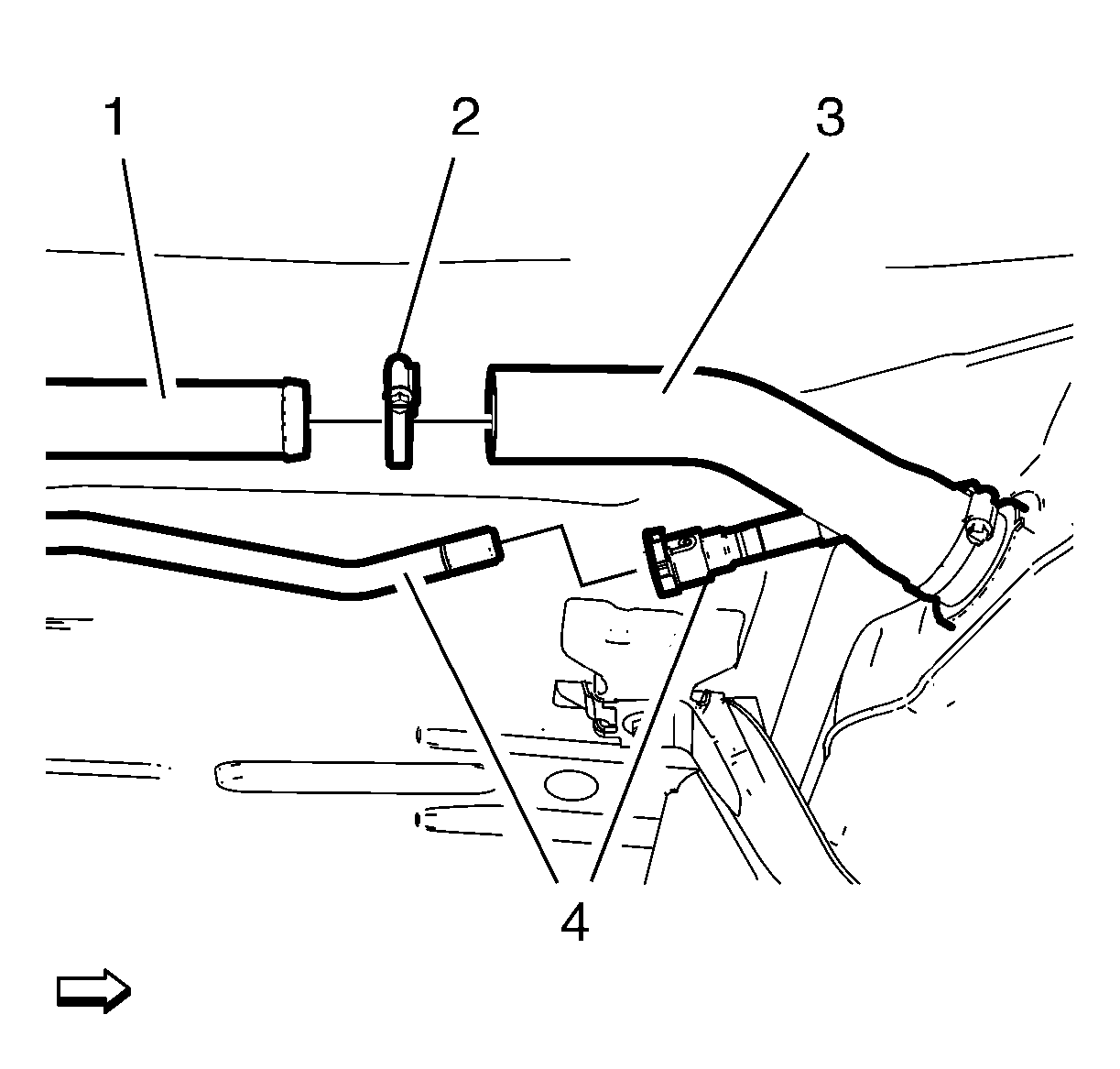

Fig 5: Fuel Tank Filler Pipe & Components

Courtesy of GENERAL MOTORS COMPANY

Connect the fuel tank filler vent pipe (4). Refer to Plastic Collar Quick Connect Fitting Service .
Install the fuel tank filler hose (3) to the fuel tank filler pipe (1).
Install the clamp (2).
Lower the vehicle.
Connect the battery. Refer to Battery Negative Cable Disconnection and Connection .
