Installation Procedure

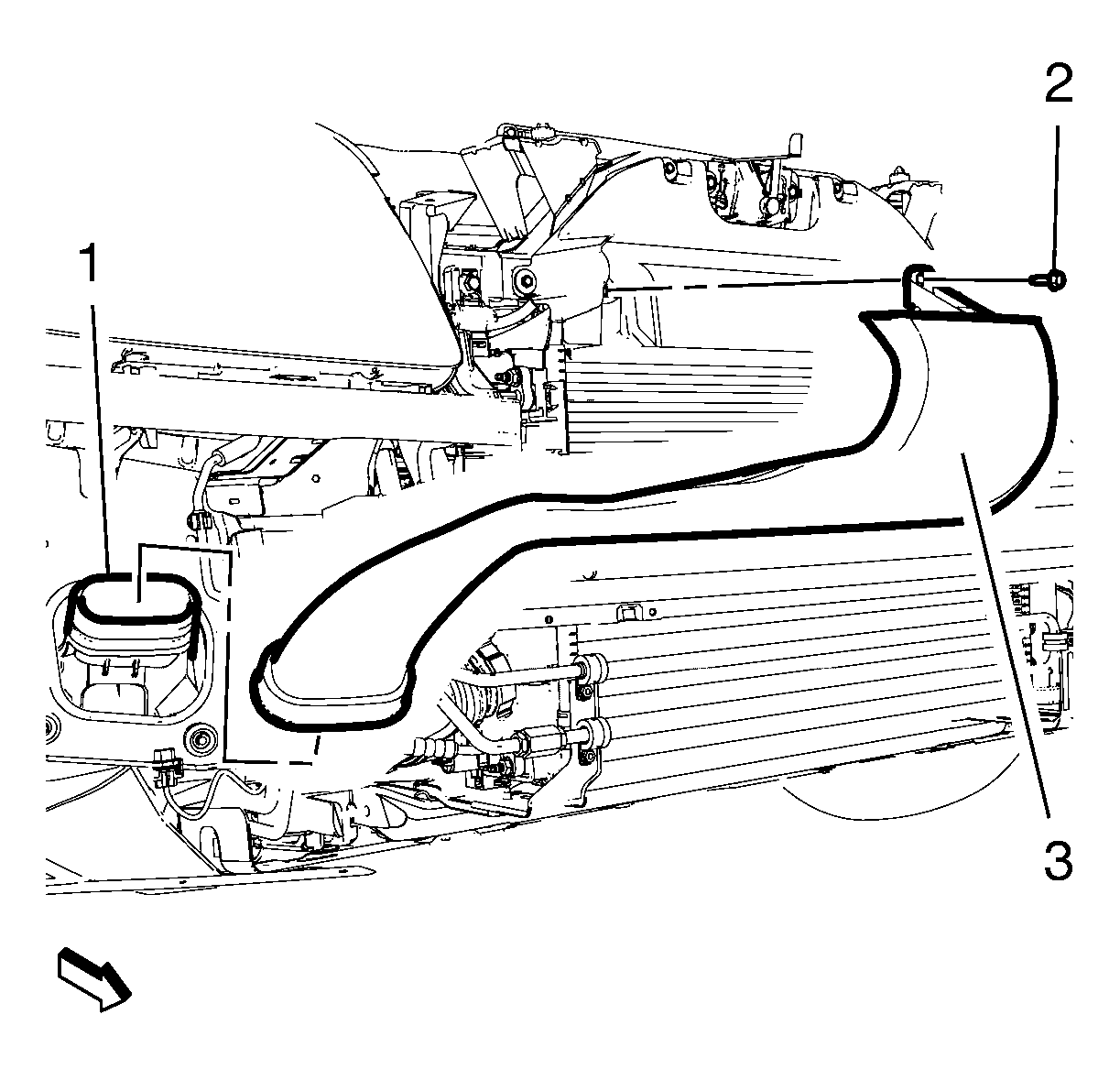

    Fig 1: Intake Air Ducts & Bolts
    GM2511755Courtesy of GENERAL MOTORS COMPANY
  1. Install the front intake air duct (3) to the rear intake air duct (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the front intake air duct bolt (2) and tighten to 5 N.m (44 lb in).
  3. Install the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement .
