Installation Procedure

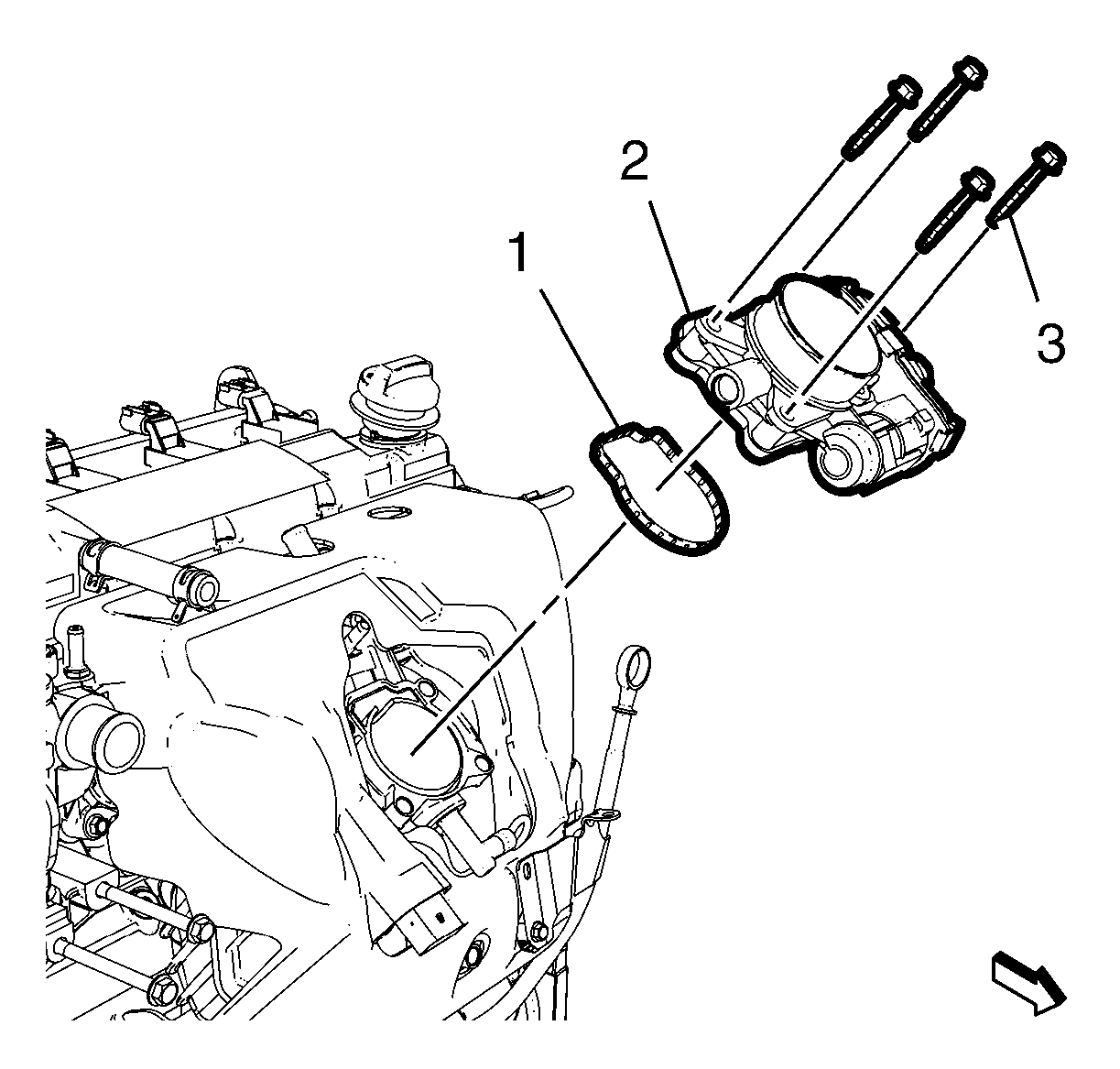

    Fig 1: Throttle Body, Bolts & Gasket
    GM2557056Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW gasket (1).
  2. Install the throttle body (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install 4 throttle body bolts (3), and tighten to 10 N.m (89 lb in).
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
