Data Communications System Wiring Schematics
>>
High Speed Bus 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
High Speed Bus 1

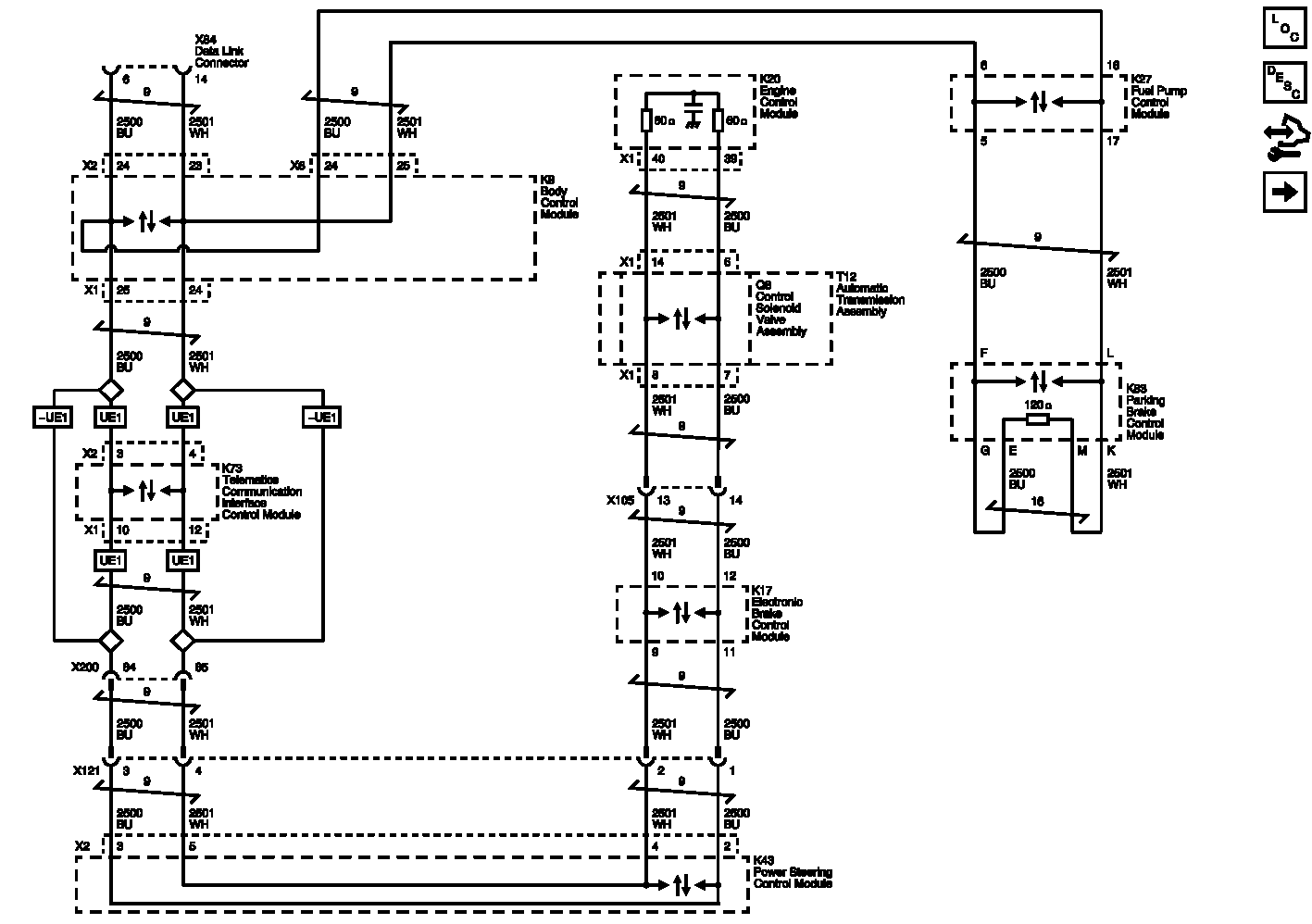

Fig 1: High Speed Bus 1 Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
