Linear Interconnect Network (LIN)

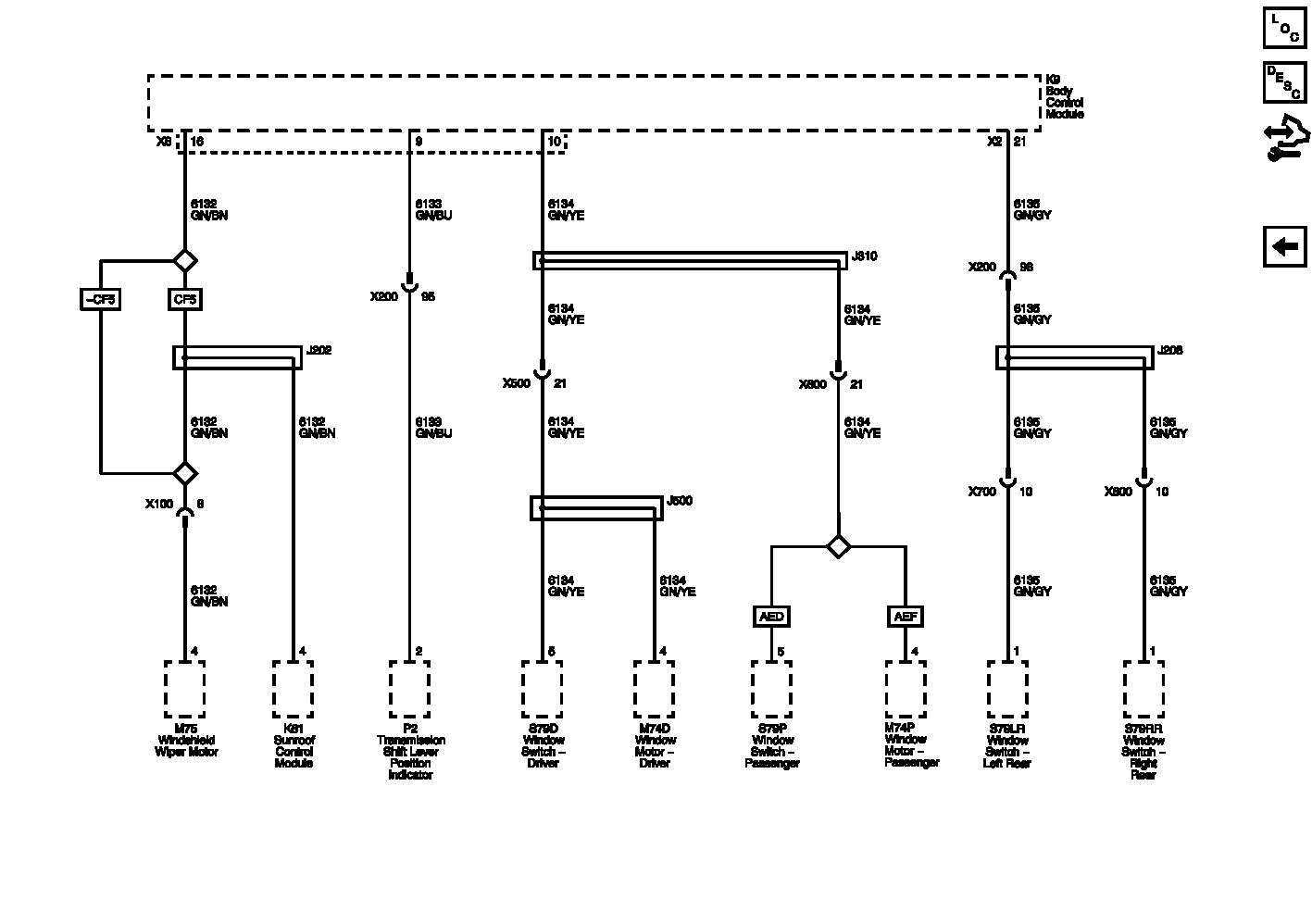

Fig 1: Linear Interconnect Network (LIN) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
