Serial Data Communication Enable

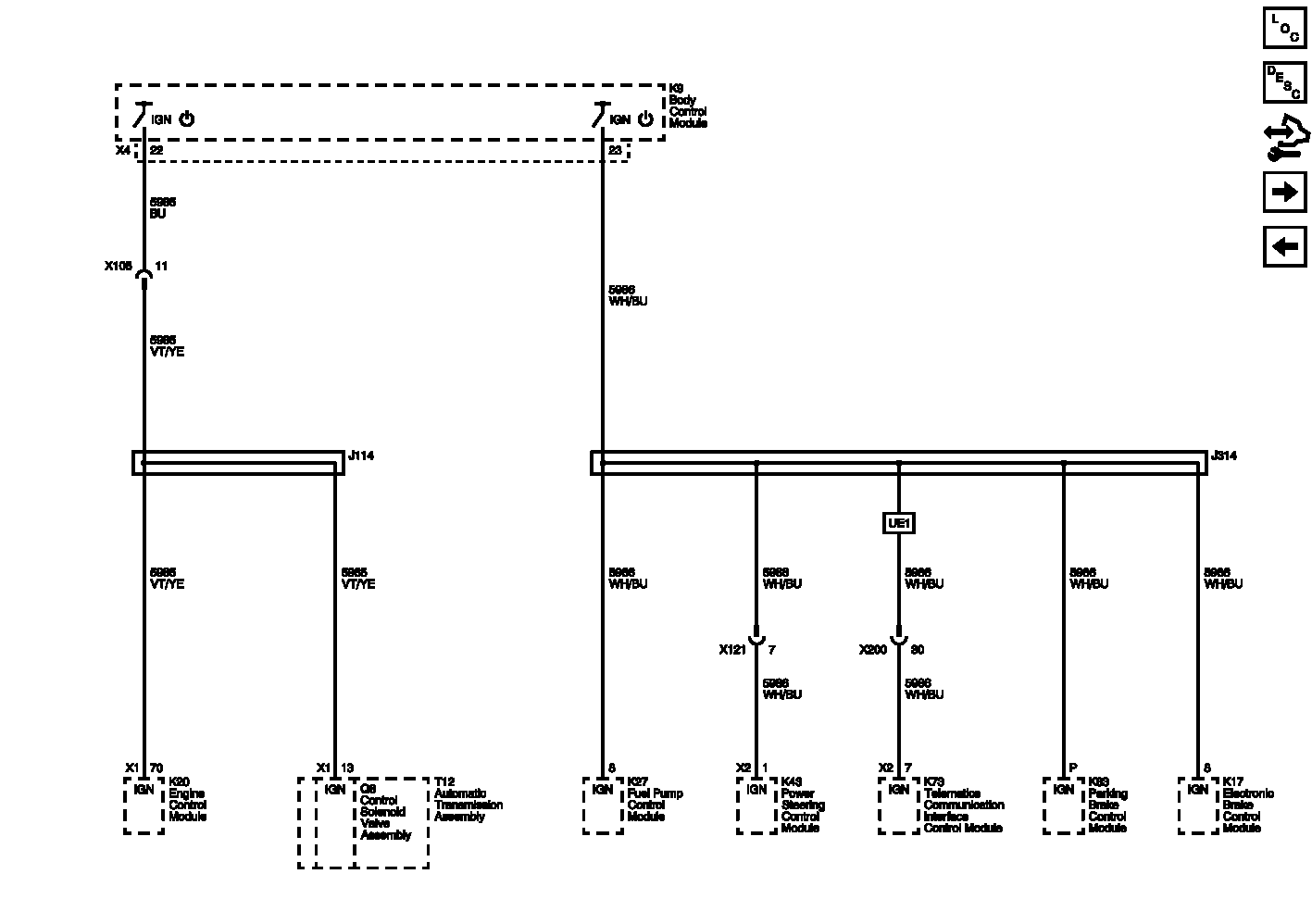

Fig 1: Serial Data Communication Enable Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
