Steering Column Components

Steering Column Components

Component Name Callout
S82 Windshield Wiper/Washer Switch 1
X85 Steering Wheel Air Bag Coil 2
S78 Turn Signal/Multifunction Switch 3
M93 Key Capture Solenoid Actuator (without BTM) 4
S39 Ignition Switch (without BTM) 5

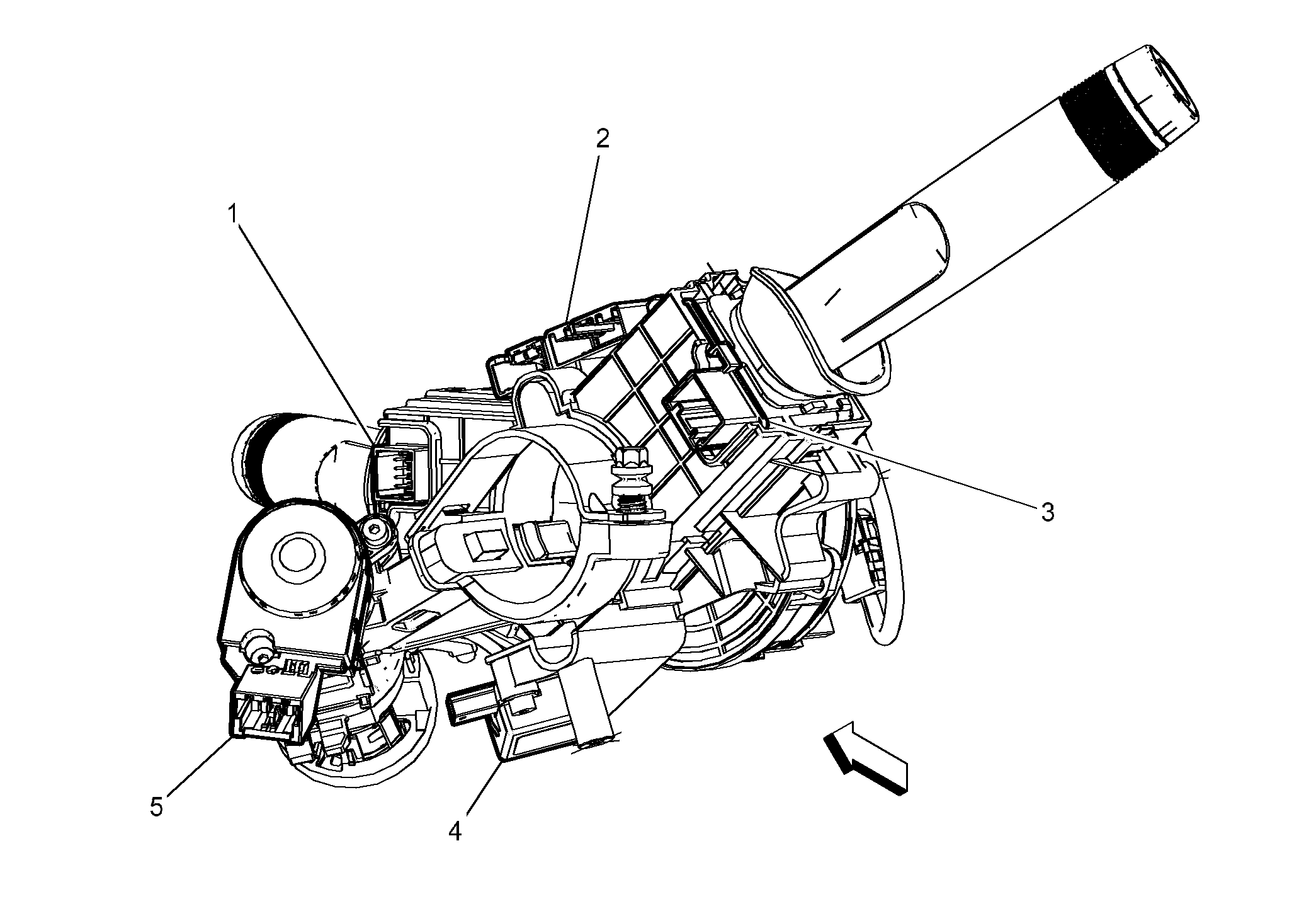

Fig 1: Steering Column Components
GM2714939Courtesy of GENERAL MOTORS COMPANY
