Module Power, Ground And Subsystem References

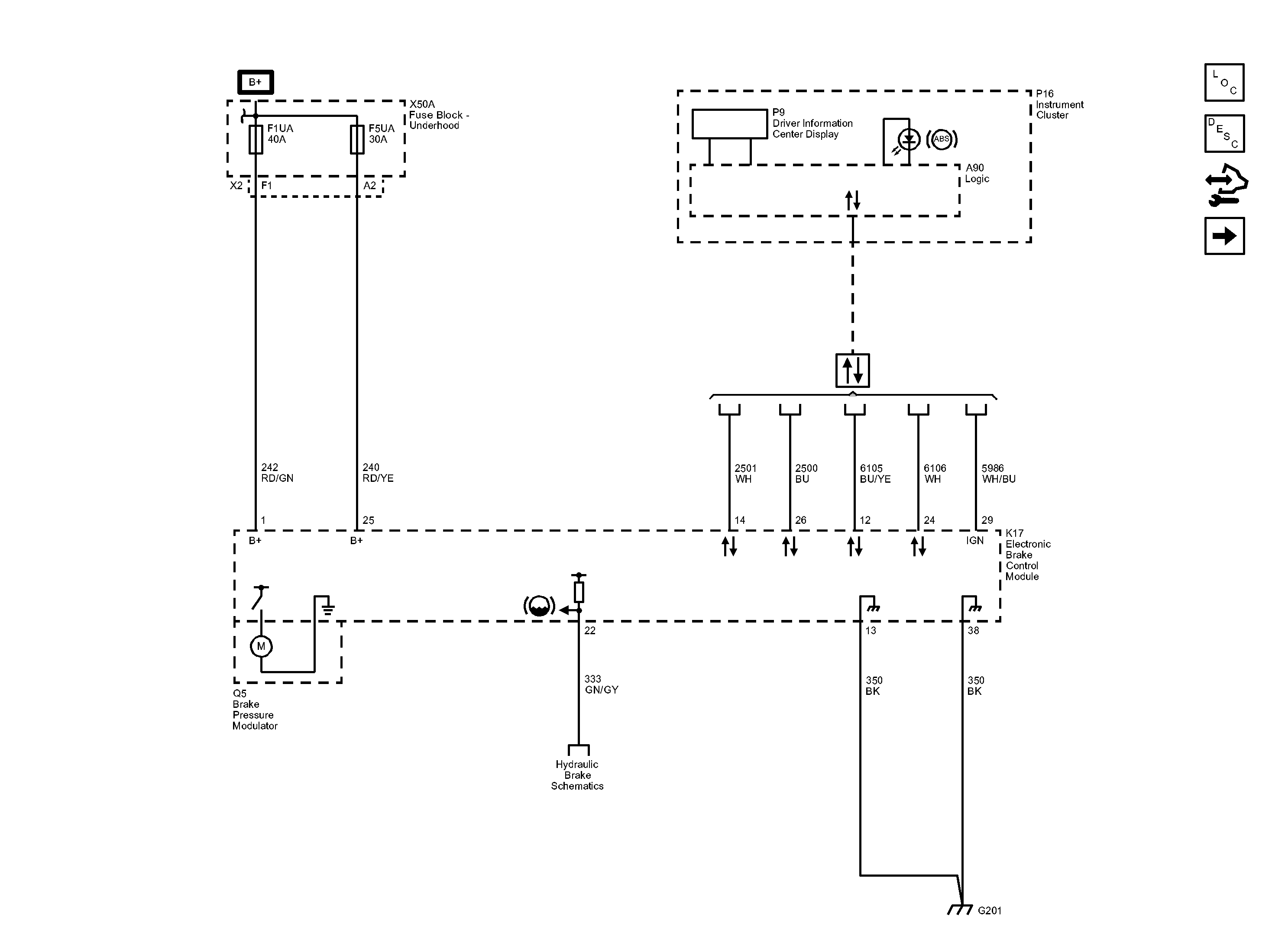

Fig 1: Module Power, Ground And Subsystem References Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
