Charge Air Cooler Replacement

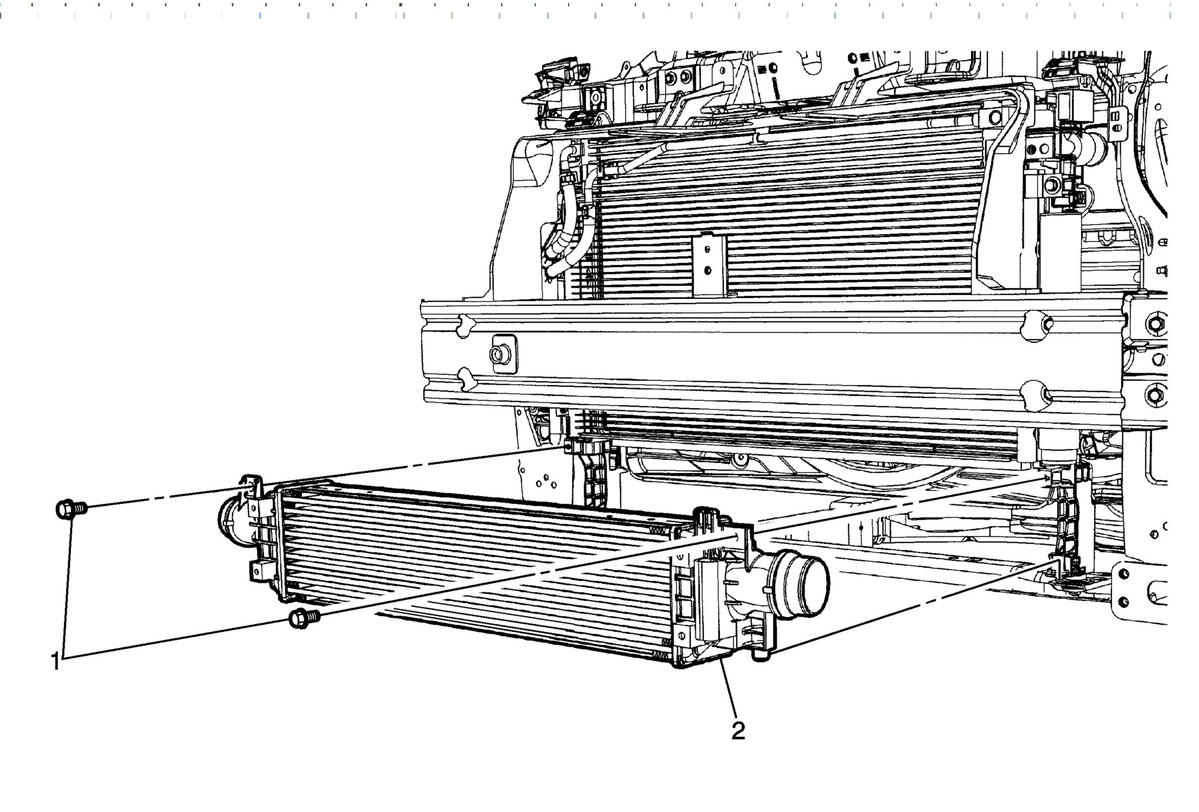

Fig 1: Charge Air Cooler

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front fascia. Refer to Front Bumper Fascia Replacement (Buick) . Remove the charge air cooler inlet air hose from the charge air cooler. Refer to Charge Air Cooler Inlet Air Hose Replacement . Remove the charge air cooler outlet air hose from the charge air cooler. Refer to Charge Air Cooler Outlet Air Hose Replacement . Remove the lower impact bar. Refer to Front Bumper Lower Impact Bar Replacement (Chevrolet) . Remove the radiator air lower baffle and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement (LUJ, LUV) .
1	Charge Air Cooler Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 (89 lb in)
2	Charge Air Cooler

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front fascia. Refer to Front Bumper Fascia Replacement (Buick) .
Remove the charge air cooler inlet air hose from the charge air cooler. Refer to Charge Air Cooler Inlet Air Hose Replacement .
Remove the charge air cooler outlet air hose from the charge air cooler. Refer to Charge Air Cooler Outlet Air Hose Replacement .
Remove the lower impact bar. Refer to Front Bumper Lower Impact Bar Replacement (Chevrolet) .
Remove the radiator air lower baffle and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement (LUJ, LUV) .

Charge Air Cooler Fasteners (Qty: 2)

CAUTION:

Tighten
10 (89 lb in)

Charge Air Cooler
