Manifold Absolute Pressure Sensor Replacement

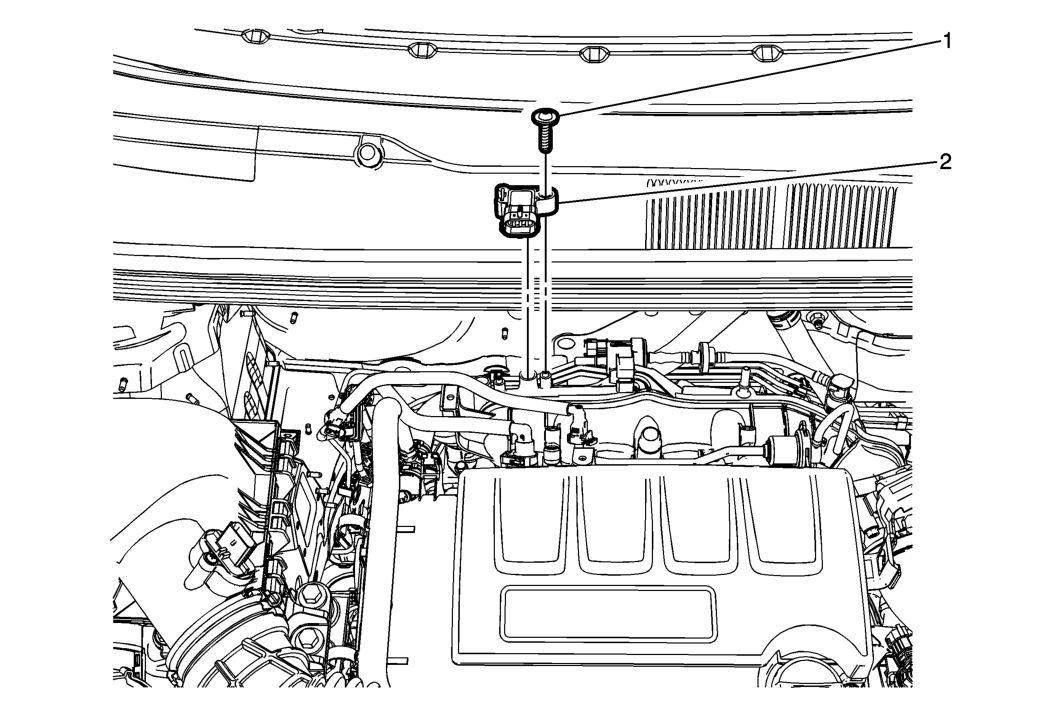

Fig 1: Manifold Absolute Pressure Sensor
GM2774843Courtesy of GENERAL MOTORS COMPANY
Manifold Absolute Pressure Sensor Replacement

Callout Component Name
1 Manifold Absolute Pressure Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
10 (89 lb in)
2 Manifold Absolute Pressure Sensor
Procedure
Disconnect the manifold absolute pressure sensor electrical connector.
