Air Cleaner Element Replacement (2H0)

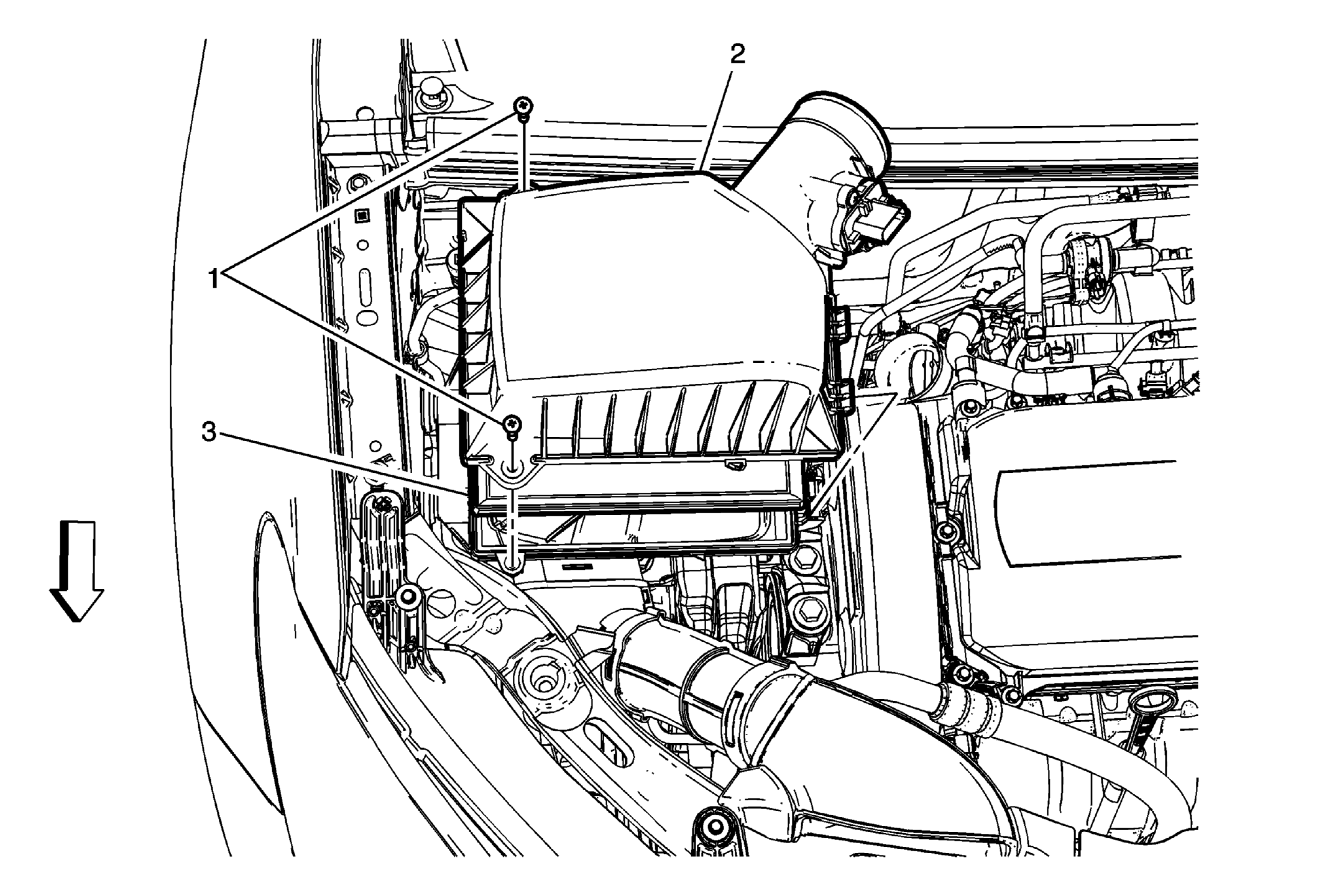

Fig 1: Air Cleaner Element (2H0)
GM2790943Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Element Replacement (2H0)

Callout Component Name

Preliminary Procedures

  1. Disconnect the mass airflow sensor electrical connector.
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (2H0) .
1 Air Cleaner Housing Fasteners (Qty: 2)
2 Air Cleaner Housing
3 Air Cleaner Element
