Knock Sensor Replacement (2H0)

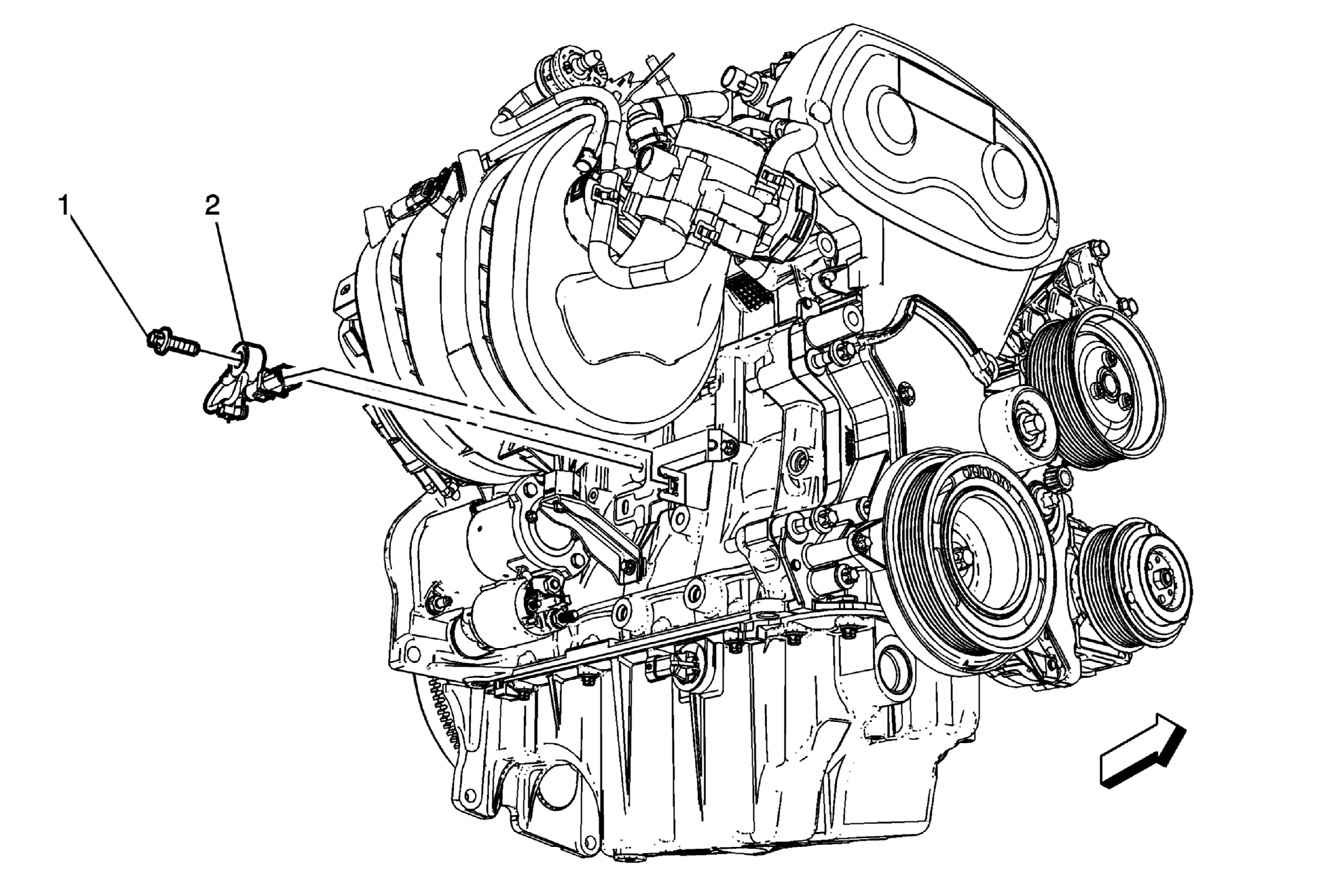

Fig 1: Knock Sensor (2H0)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold. Refer to Intake Manifold Replacement . Disconnect the electrical wiring harness connector.
1	Knock Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Knock Sensor Procedure Remove knock sensor harness connector from bracket.

Callout

Component Name

Preliminary Procedure

Knock Sensor Fastener

CAUTION:

Tighten
20 N.m (15 lb ft)

Knock Sensor
Procedure
Remove knock sensor harness connector from bracket.
