Manifold Absolute Pressure Sensor Replacement (LDE)

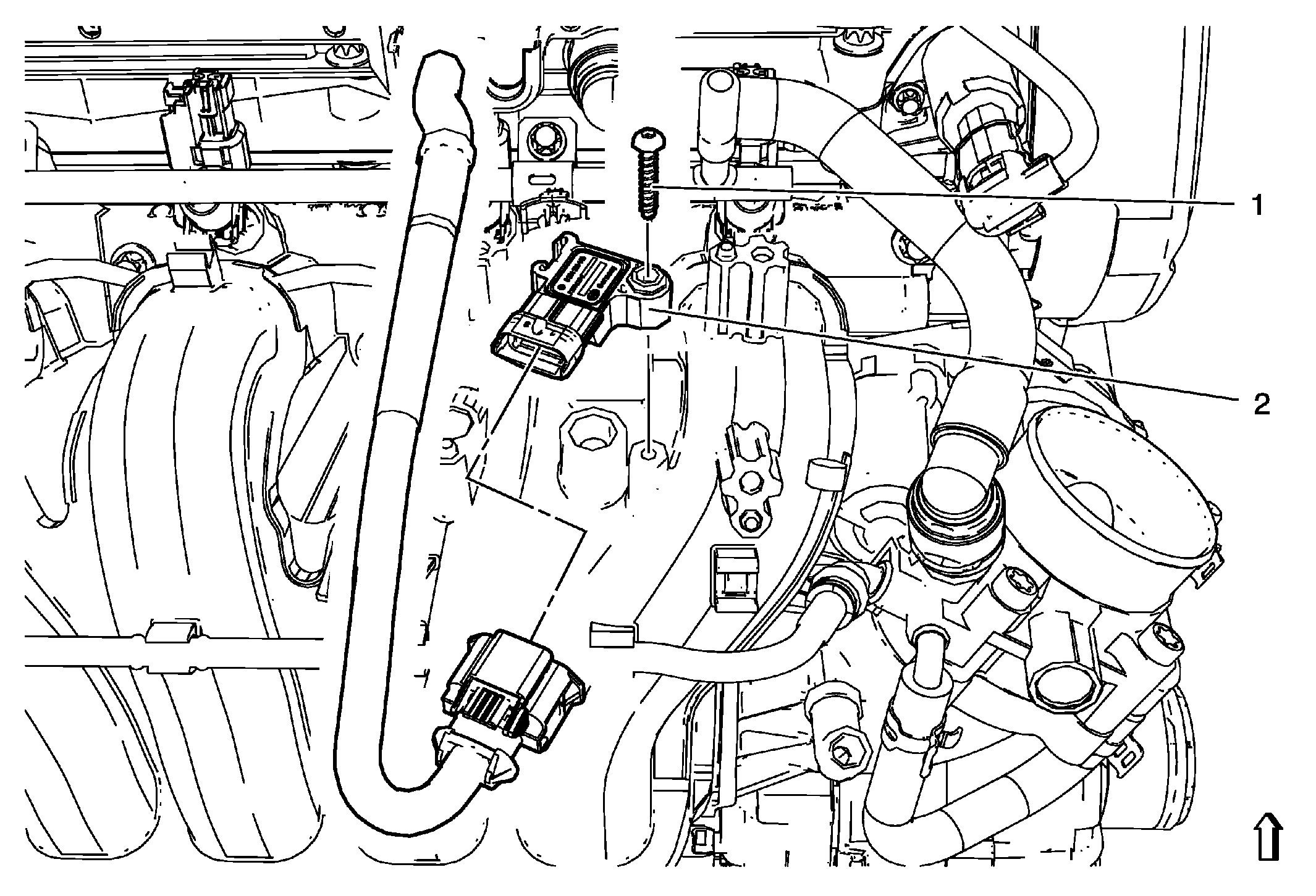

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Manifold Absolute Pressure Sensor Replacement (LDE)

Callout	Component Name
Preliminary Procedure  Disconnect the electrical connection.
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  2 (18 lb in)
2	Manifold Absolute Pressure Sensor
