Subsystem References (3 Of 4)

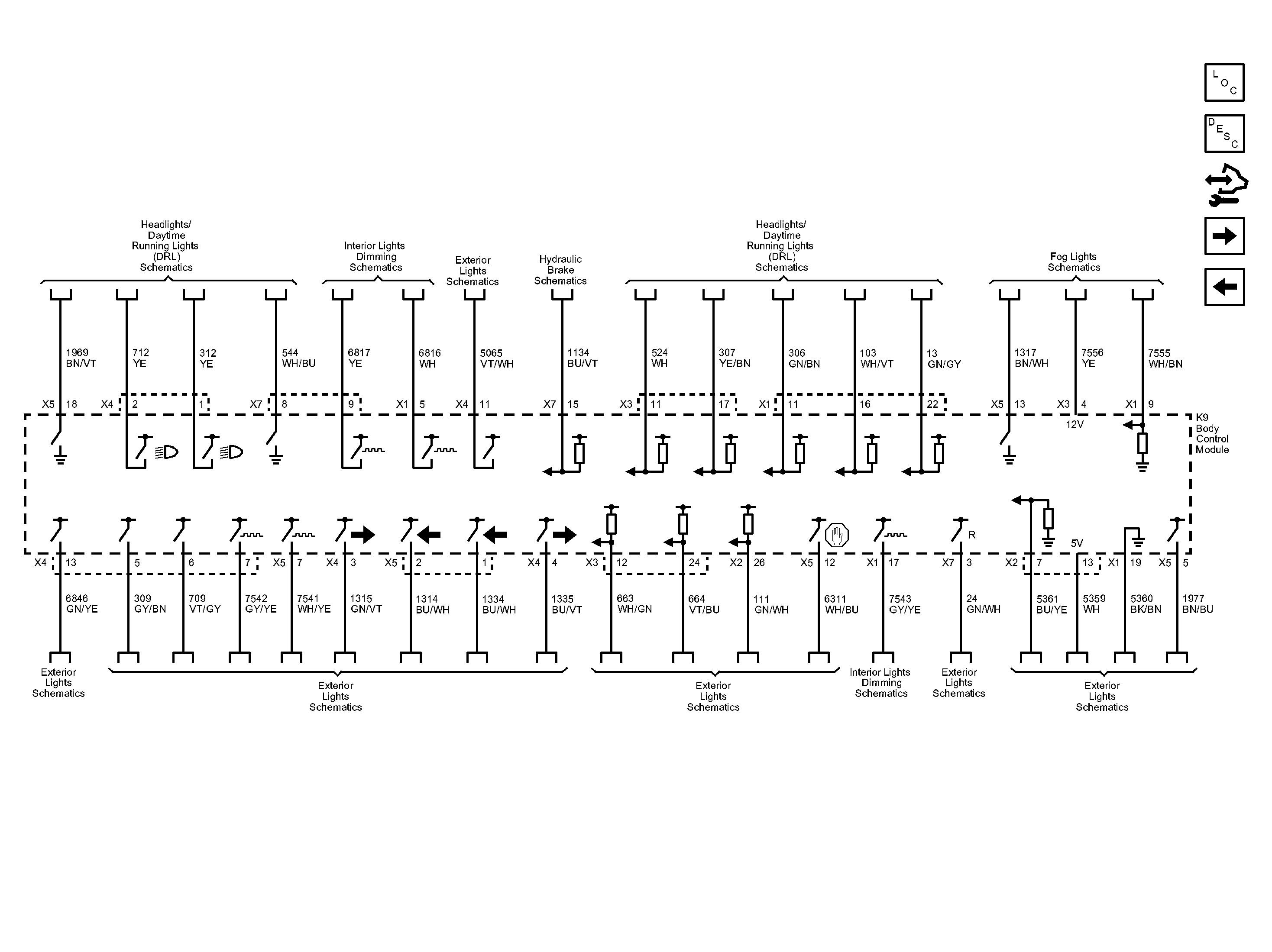

Fig 1: Subsystem References Wiring Schematic (3 Of 4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
