Installation Procedure

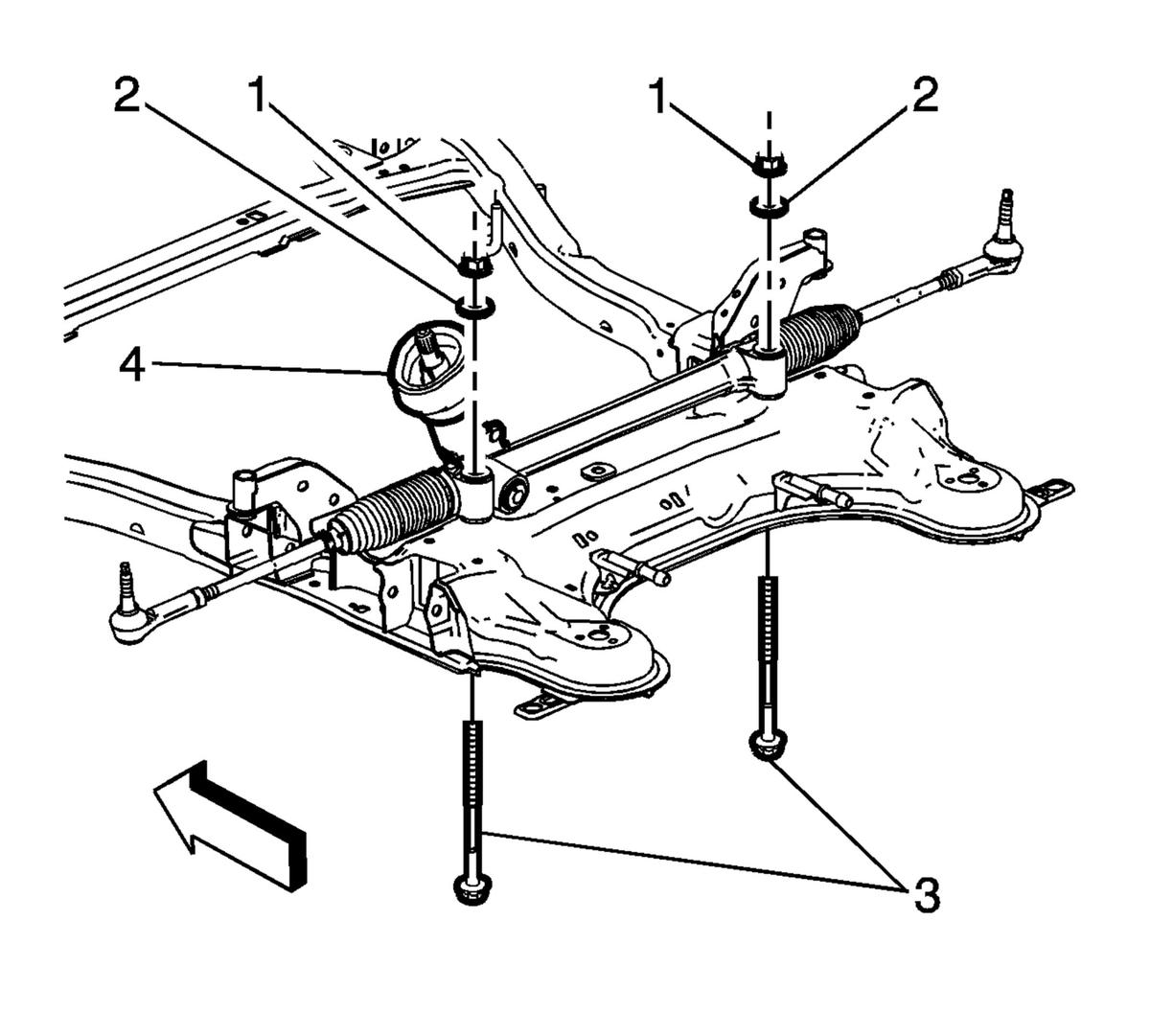

    Fig 1: Steering Gear Bolts
    GM2813356Courtesy of GENERAL MOTORS COMPANY
  1. Position the steering gear (4) on the vehicle.
  2. Install the NEW steering gear nuts (1), washers (2) and NEW steering gear bolts (3).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the steering gear bolts (3) to 100 N.m (74 lb ft) + 97 degrees.
  4. Install the stabilizer shaft. Refer to Stabilizer Shaft Replacement .
  5. Install all drivetrain and front suspension frame bolts. Refer to Drivetrain and Front Suspension Frame Replacement (Long Cradle) or Drivetrain and Front Suspension Frame Replacement (Short Cradle) .
  6. Install the rear transmission mount bracket through bolt. Refer to Transmission Mount Bracket Replacement - Rear (AWD) or Transmission Mount Bracket Replacement - Rear (FWD) .
  7. Connect the exhaust isolators to the drivetrain and front suspension frame. Refer to Exhaust Front Pipe Replacement (2H0, LUV) .
  8. Connect the stabilizer shaft links to the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement .
  9. Connect the steering linkage outer tie rods to the steering knuckles. Refer to Steering Linkage Outer Tie Rod Replacement .
  10. Install the intermediate steering shaft upper seal. Refer to Intermediate Steering Shaft Upper Seal Replacement .
  11. Connect the intermediate steering shaft to the steering gear. Refer to Intermediate Steering Shaft Replacement (NJ1) or Intermediate Steering Shaft Replacement (N40) .
