Remote Control Door Lock Receiver Replacement

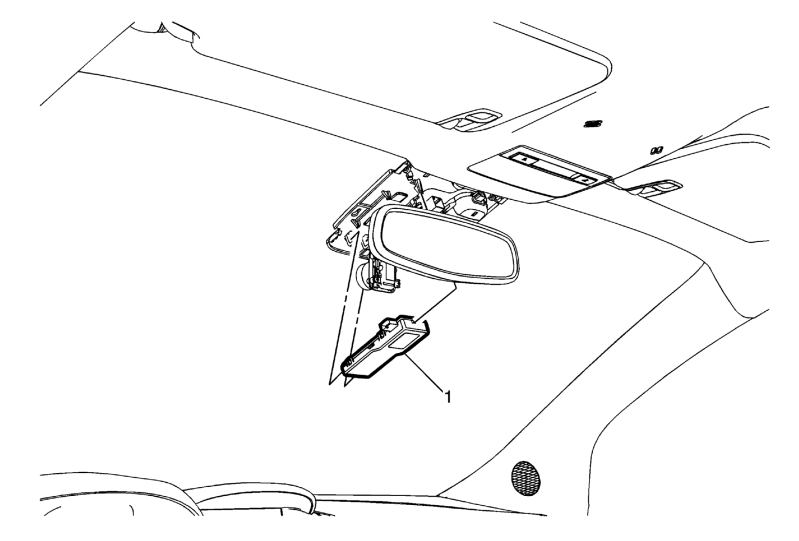

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield outside moisture sensor cover. Refer to Windshield Outside Moisture Sensor Cover Replacement (Buick) .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Unsnap the receiver from the windshield bracket. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the windshield outside moisture sensor cover. Refer to Windshield Outside Moisture Sensor Cover Replacement (Buick) .

Remote Control Door Lock Receiver

Procedure
