Rear Of Instrument Panel Components

Rear Of Instrument Panel Components

Items
1:  X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel, Wire Entry
2:  X84 Data Link Connector X84 Data Link Connector
3:  R6B Terminating Resistor - Mid Speed Bus R6B Termination Resistor - Mid Speed Bus
4:  K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing And Diagnostic Module X1K36 Inflatable Restraint Sensing And Diagnostic Module X2

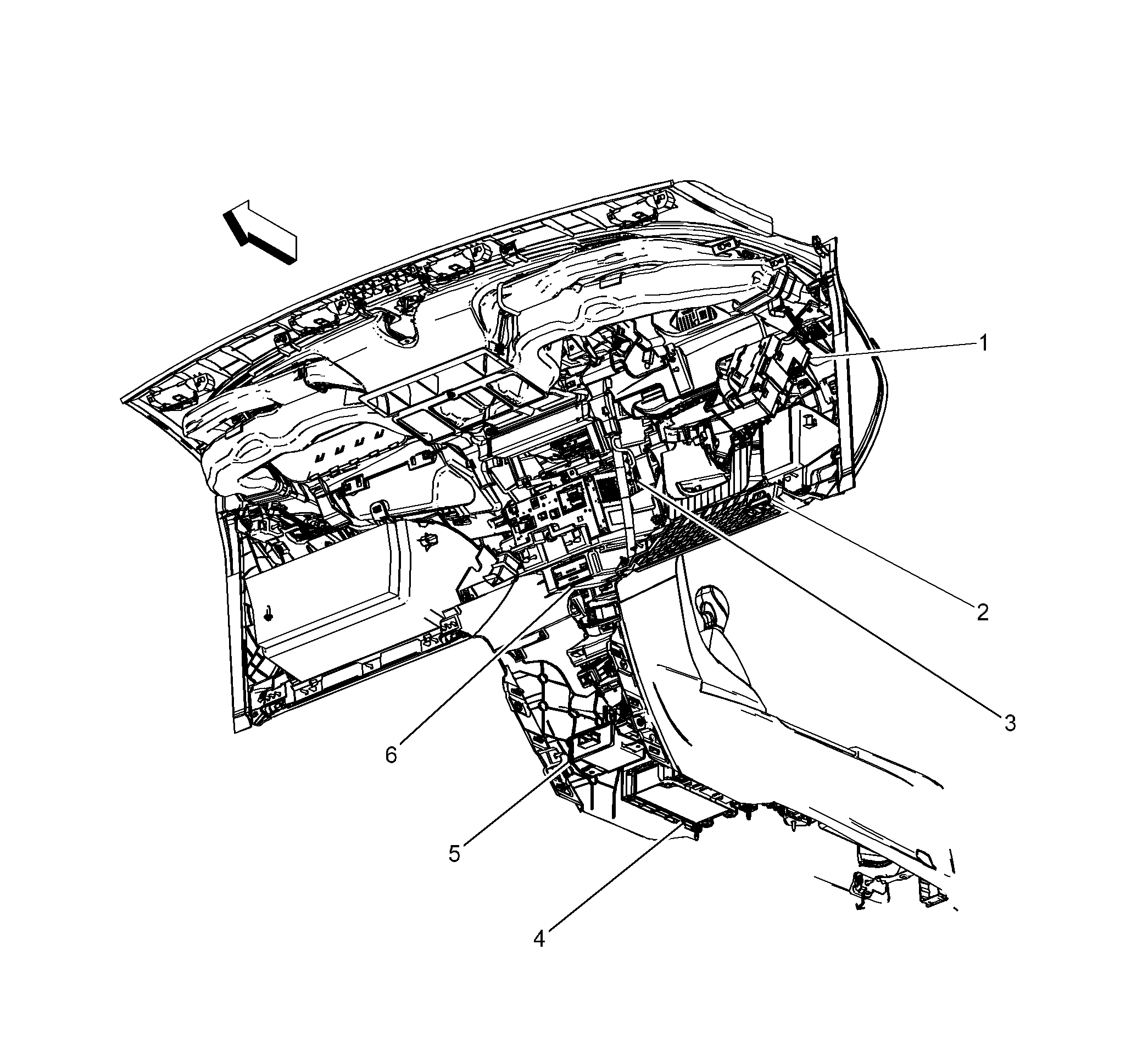

Fig 1: Rear Of Instrument Panel Components
GM2839841Courtesy of GENERAL MOTORS COMPANY
