Steering Column Components

Steering Column Components

Items
1:  K43 Power Steering Control Module (NJ1) K43 Power Steering Control Module
2:  S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
3:  X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2X85 Steering Wheel Air Bag Coil X3
4:  S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
5:  S39 Ignition Switch S39 Ignition Switch

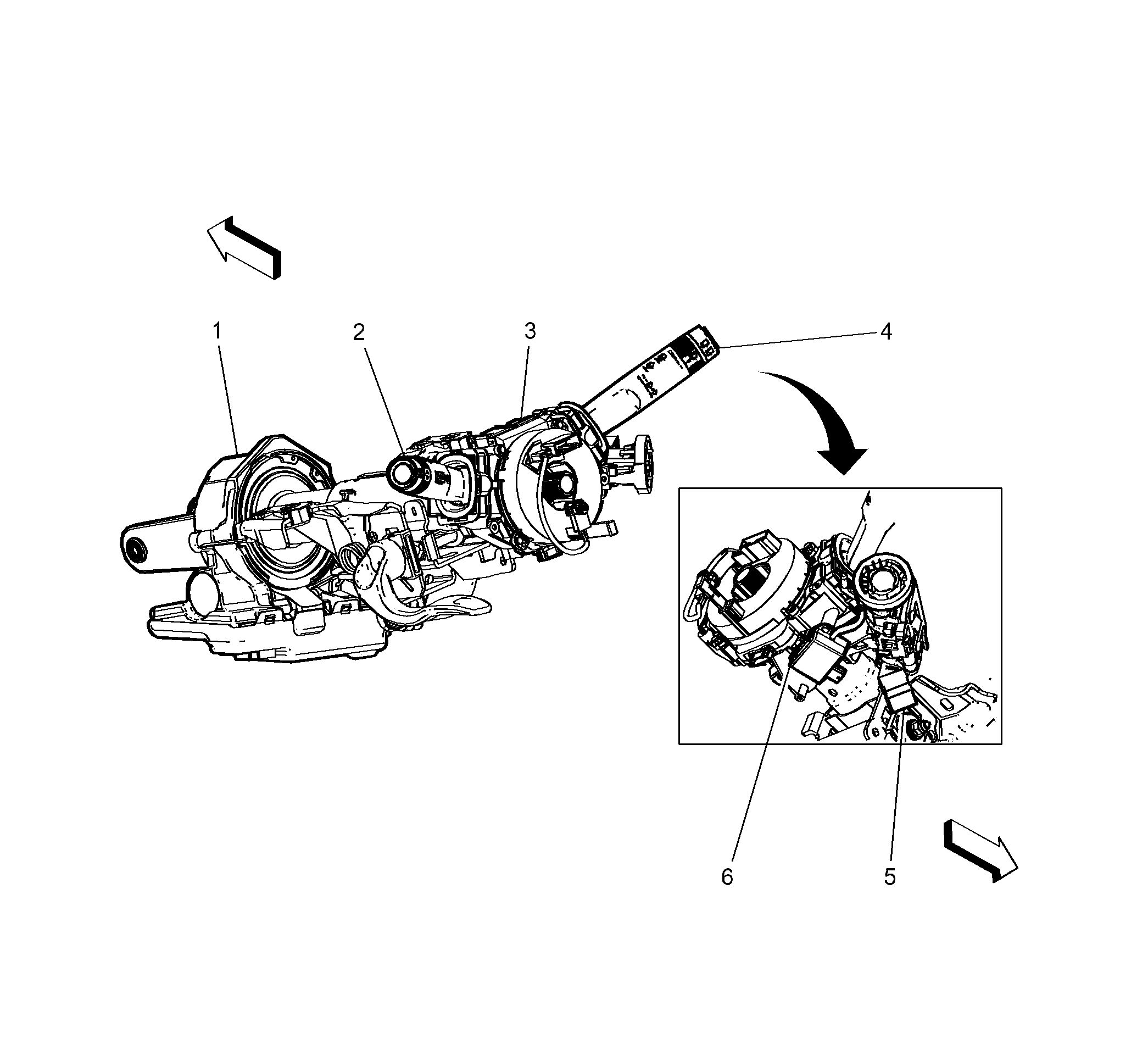

Fig 1: Steering Column Components
GM2839966Courtesy of GENERAL MOTORS COMPANY
