Mid Speed CAN

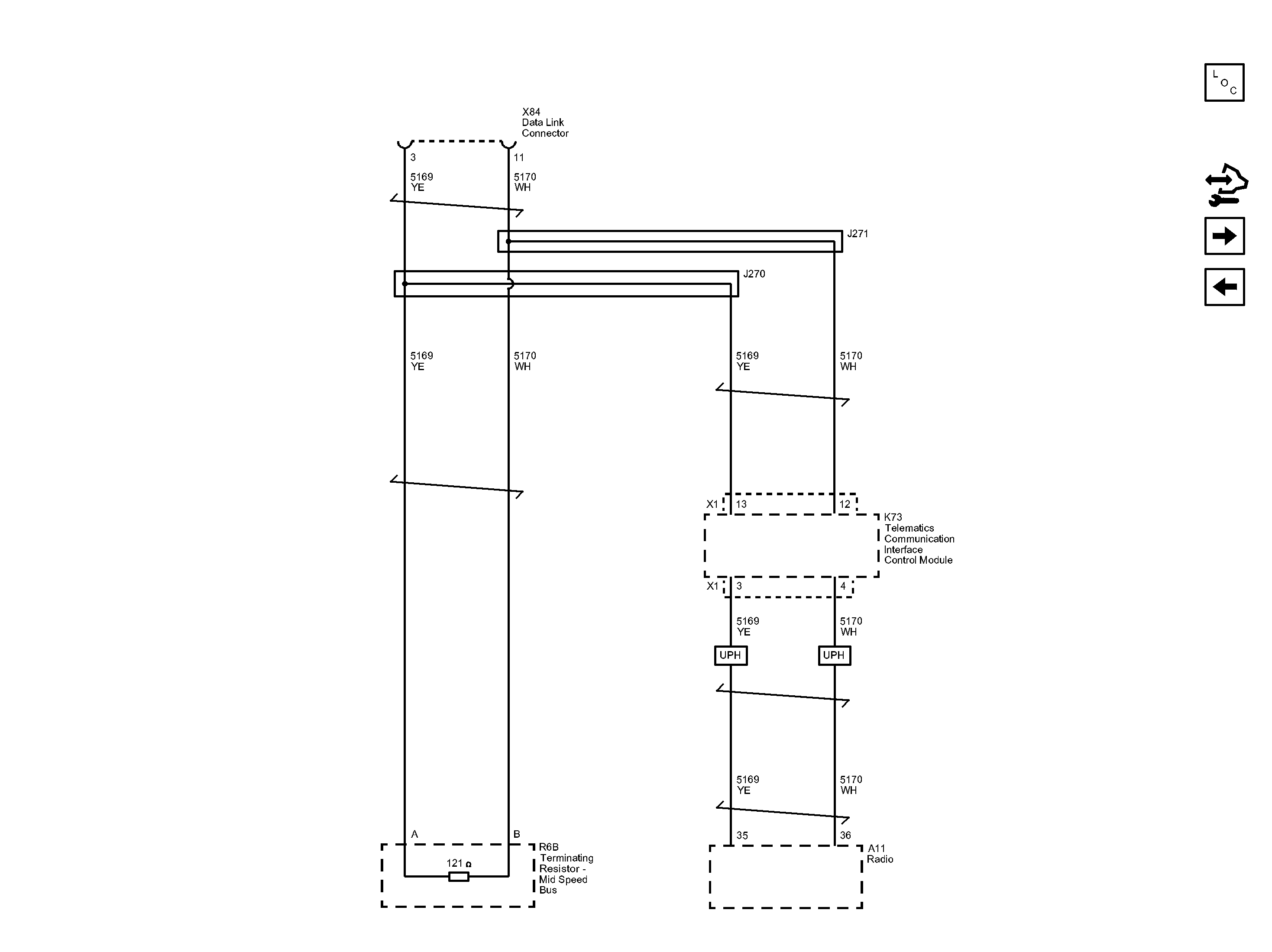

Fig 1: Mid Speed CAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
