Power, Ground, and Serial Data

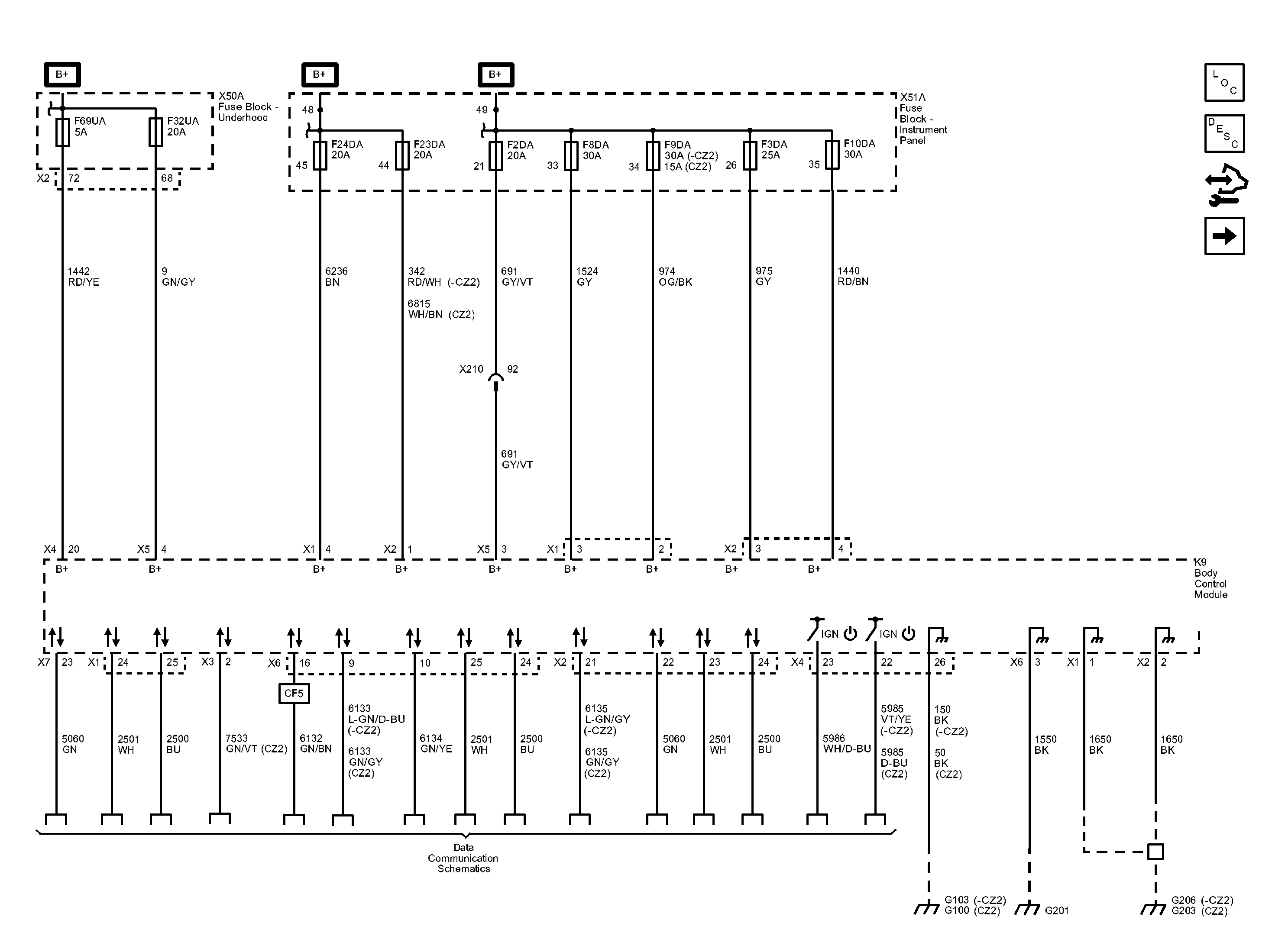

Fig 1: Power, Ground, and Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
