Subsystem References (3 of 3)

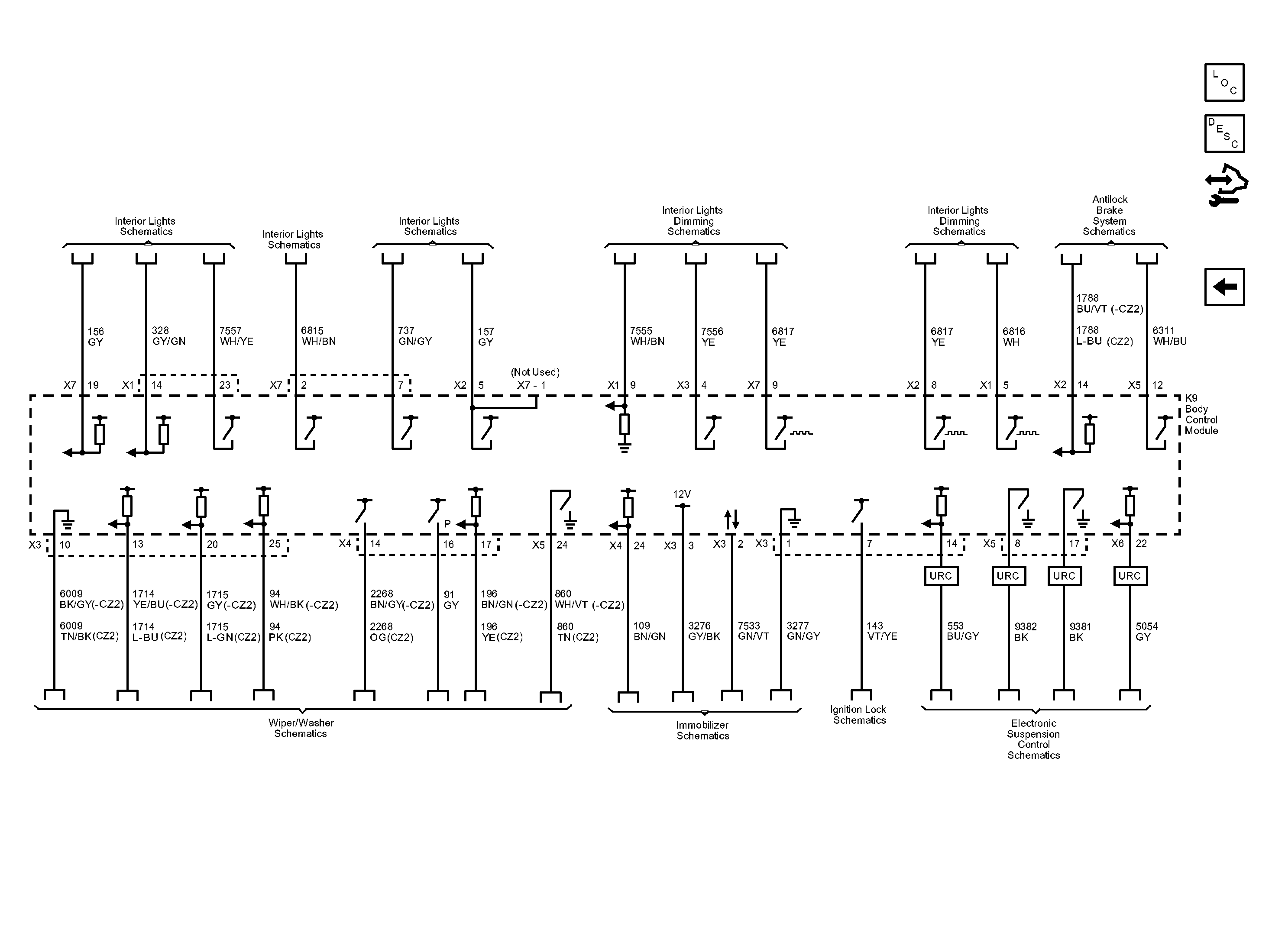

Fig 1: Subsystem References Wiring Schematic (3 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
