High Speed GMLAN CE Bus

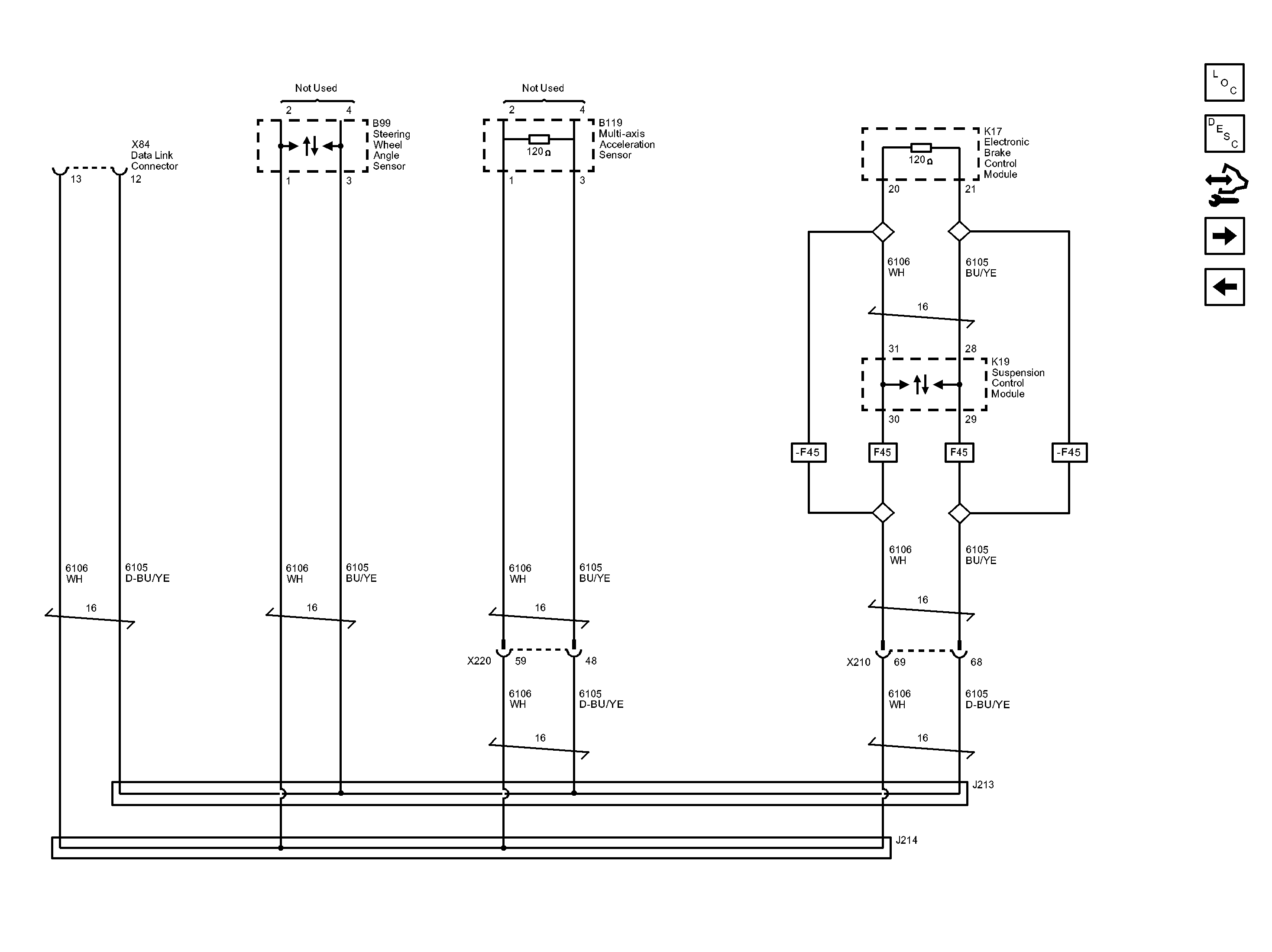

Fig 1: High Speed GMLAN CE Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
