Linear Interconnect Network (except CZ2)

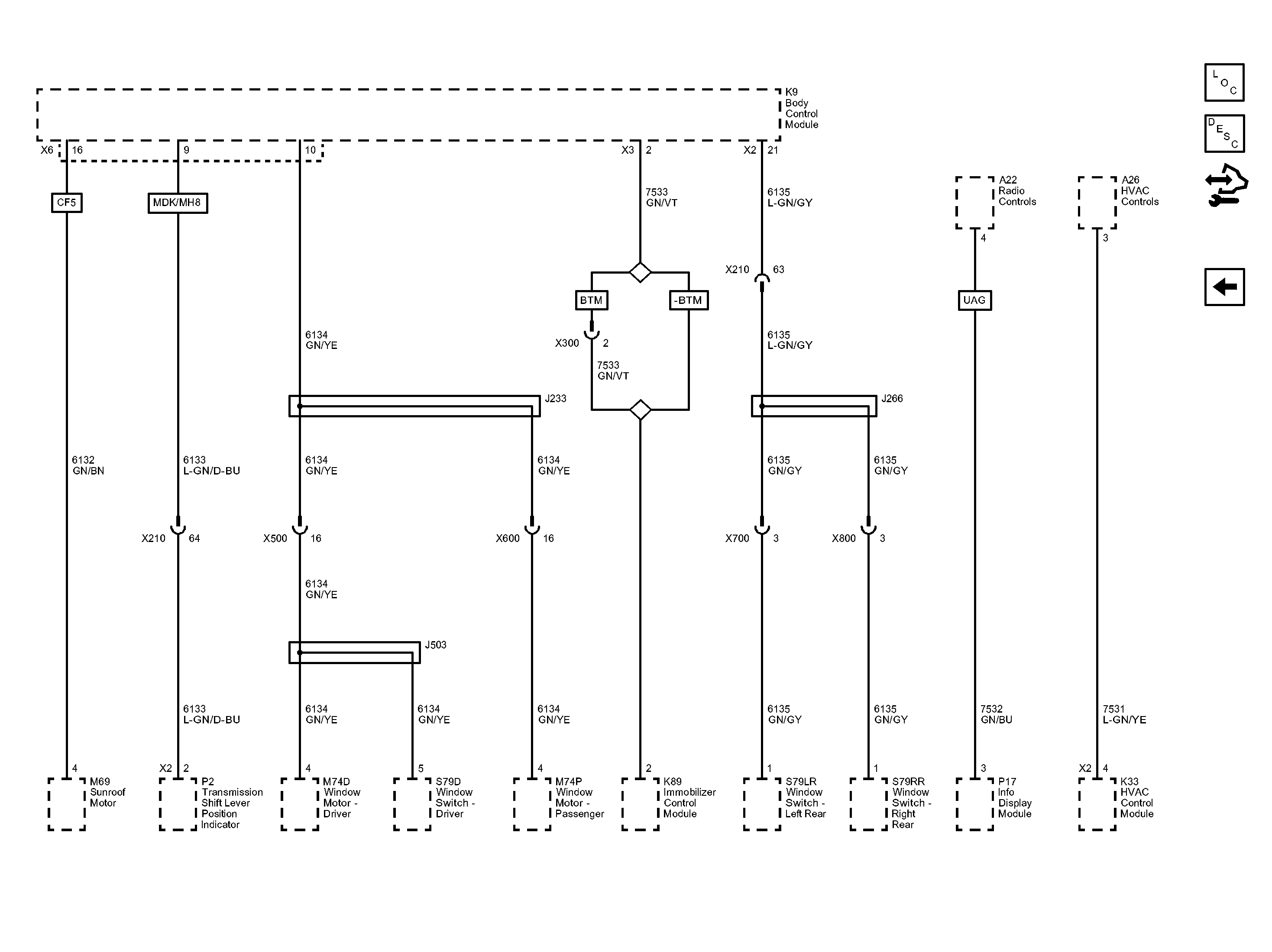

Fig 1: Linear Interconnect Network Wiring Schematic (except CZ2)
GM2790092Courtesy of GENERAL MOTORS COMPANY
