Battery Energy Control Module X4 (HP6)

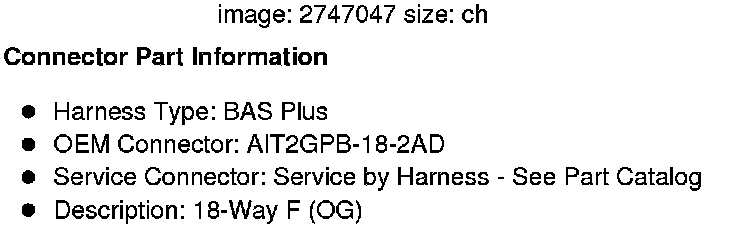

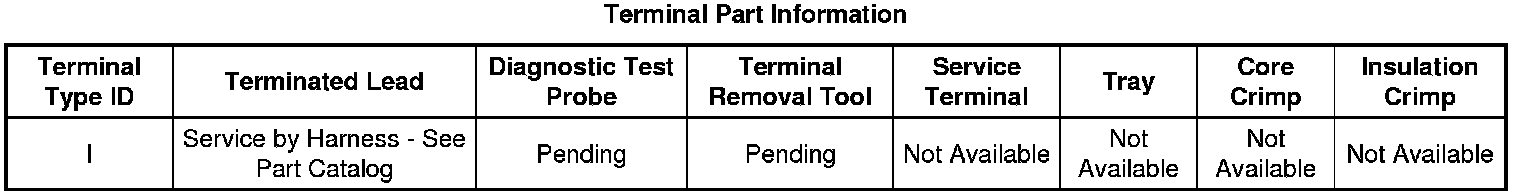

Component Connector End Views

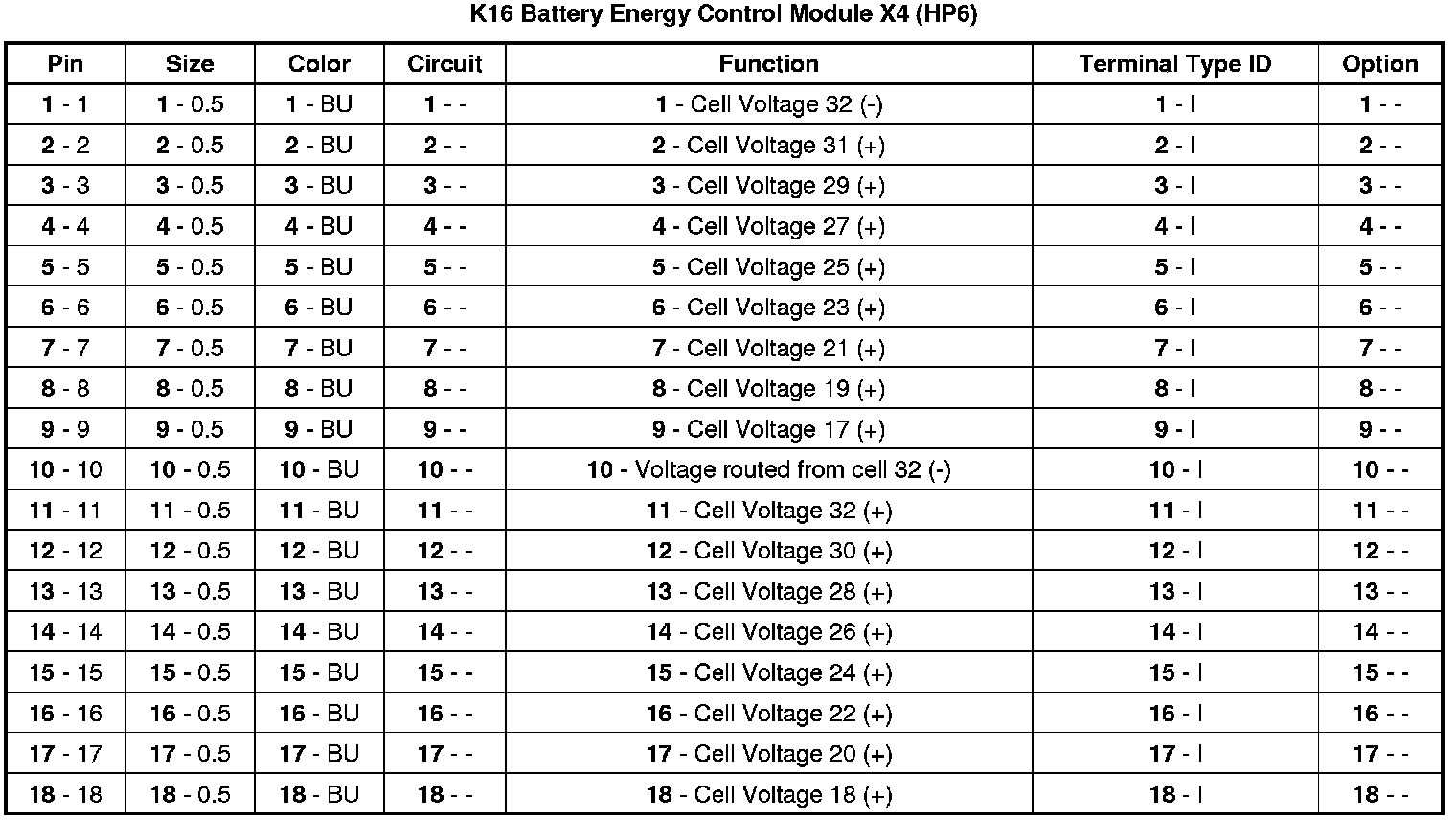

K16 Battery Energy
Control Module
X4 (HP6)
