Battery Energy Control Module X5 (HP6)

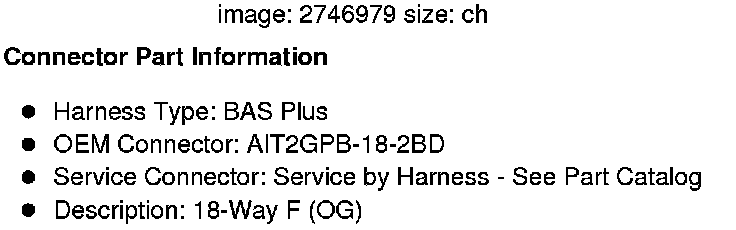

Component Connector End Views

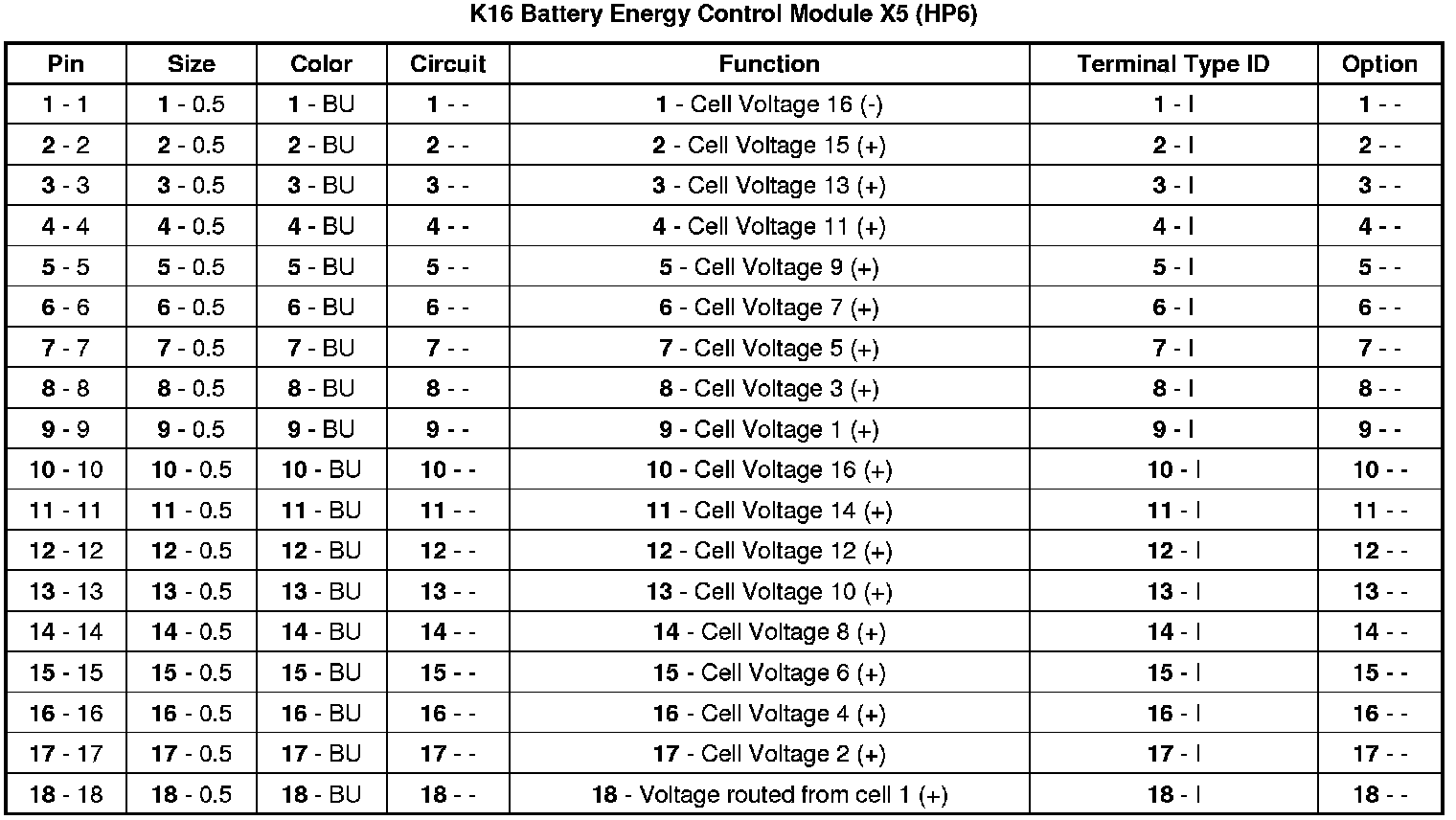

K16 Battery Energy
Control Module
X5 (HP6)
