Front Object Sensor - Left Outer (UD5)

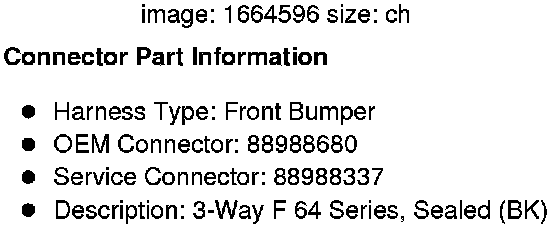

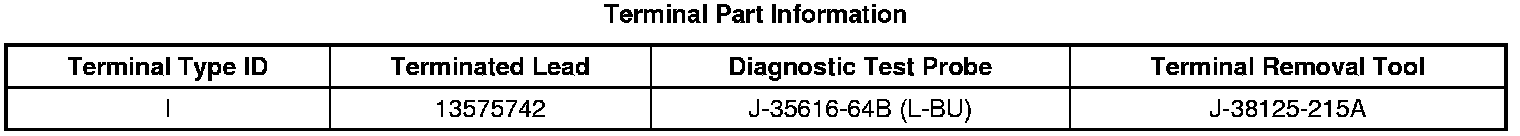

Component Connector End Views

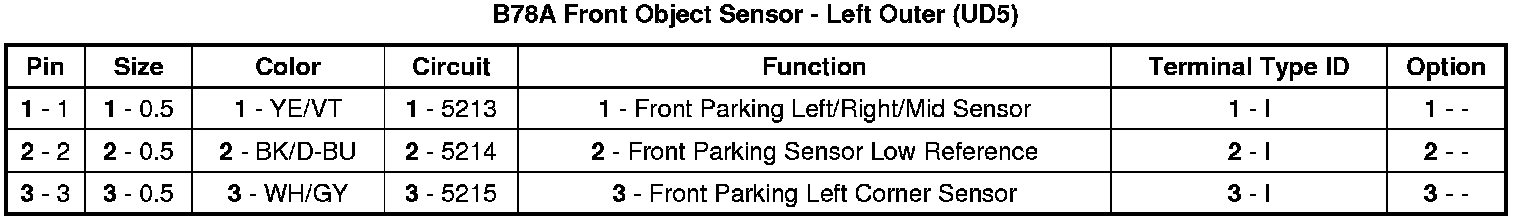

B78A Front Object Sensor - Left Outer (UD5)
