Multifunction Switch 1 - Instrument Panel (except CZ2)





Component Connector End Views

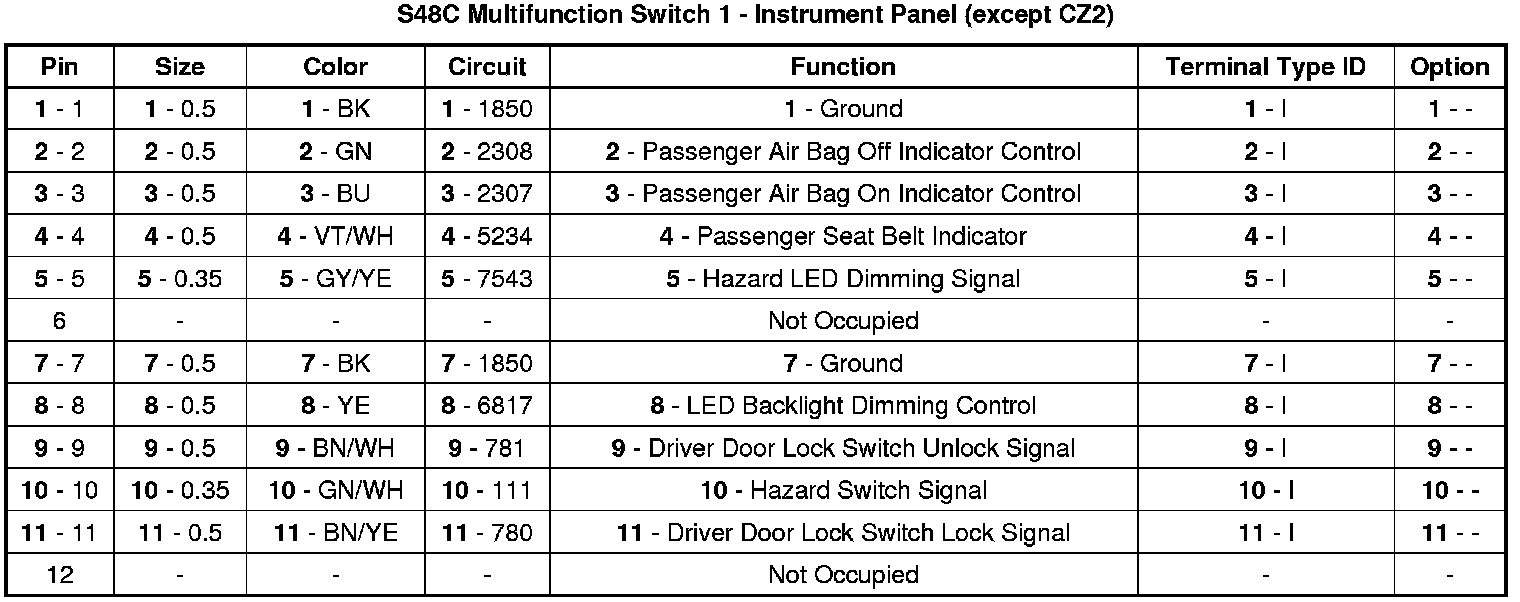

S48C Multifunction Switch 1 - Instrument Panel (except CZ2)
