Rear Parking Assist Control Module X3 (UD7 with F45)





Component Connector End Views

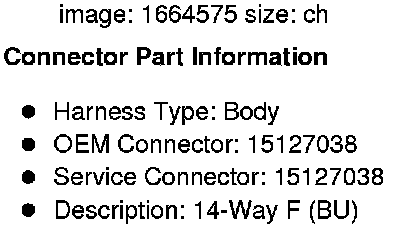

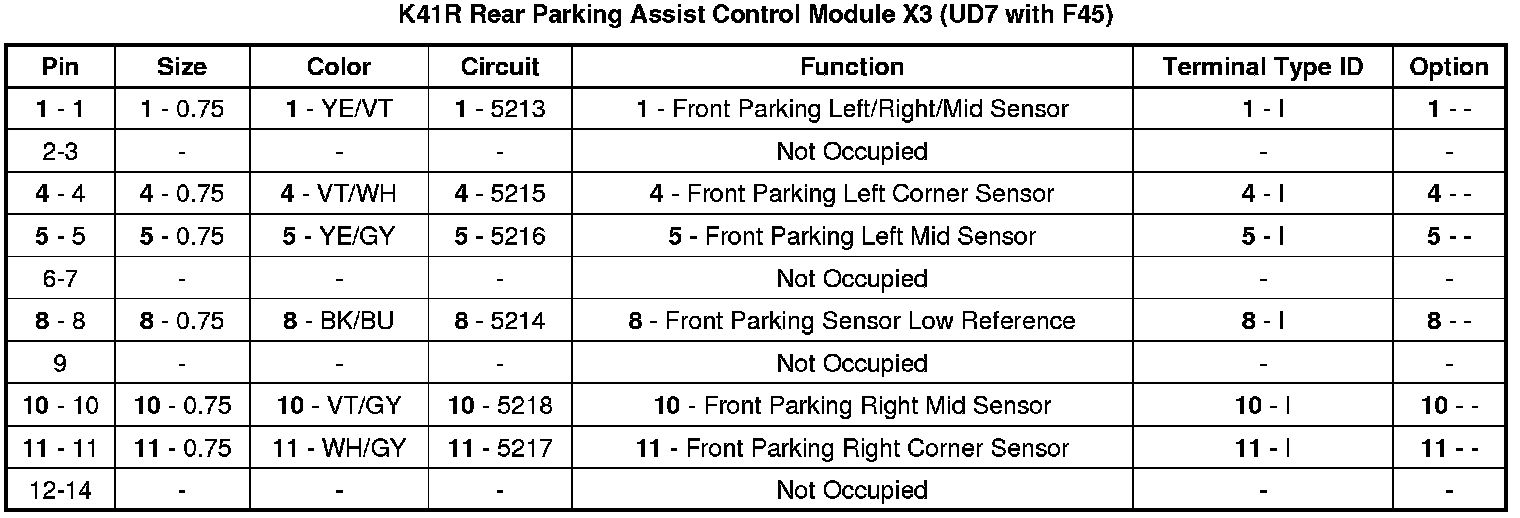

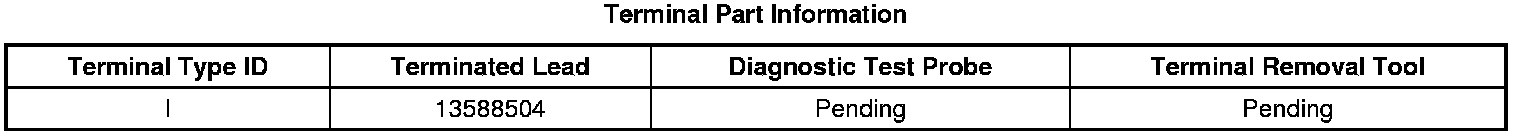

K41R Rear Parking Assist Control Module X3 (UD7 with F45)
