Seat Memory Control Module X2 A45/CZ2

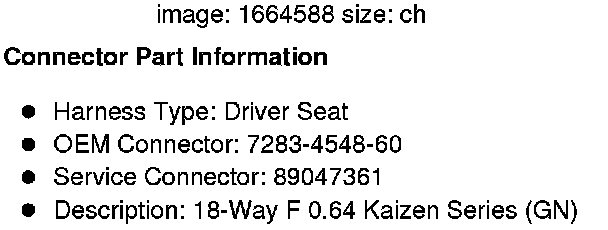

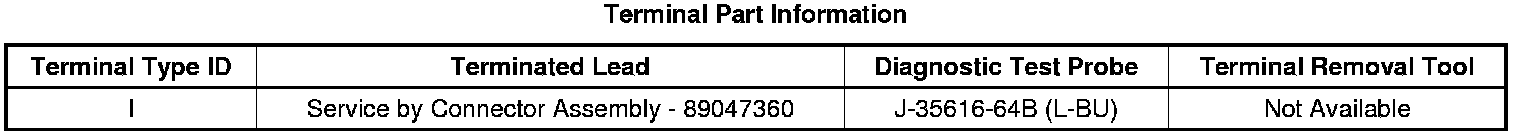

Component Connector End Views

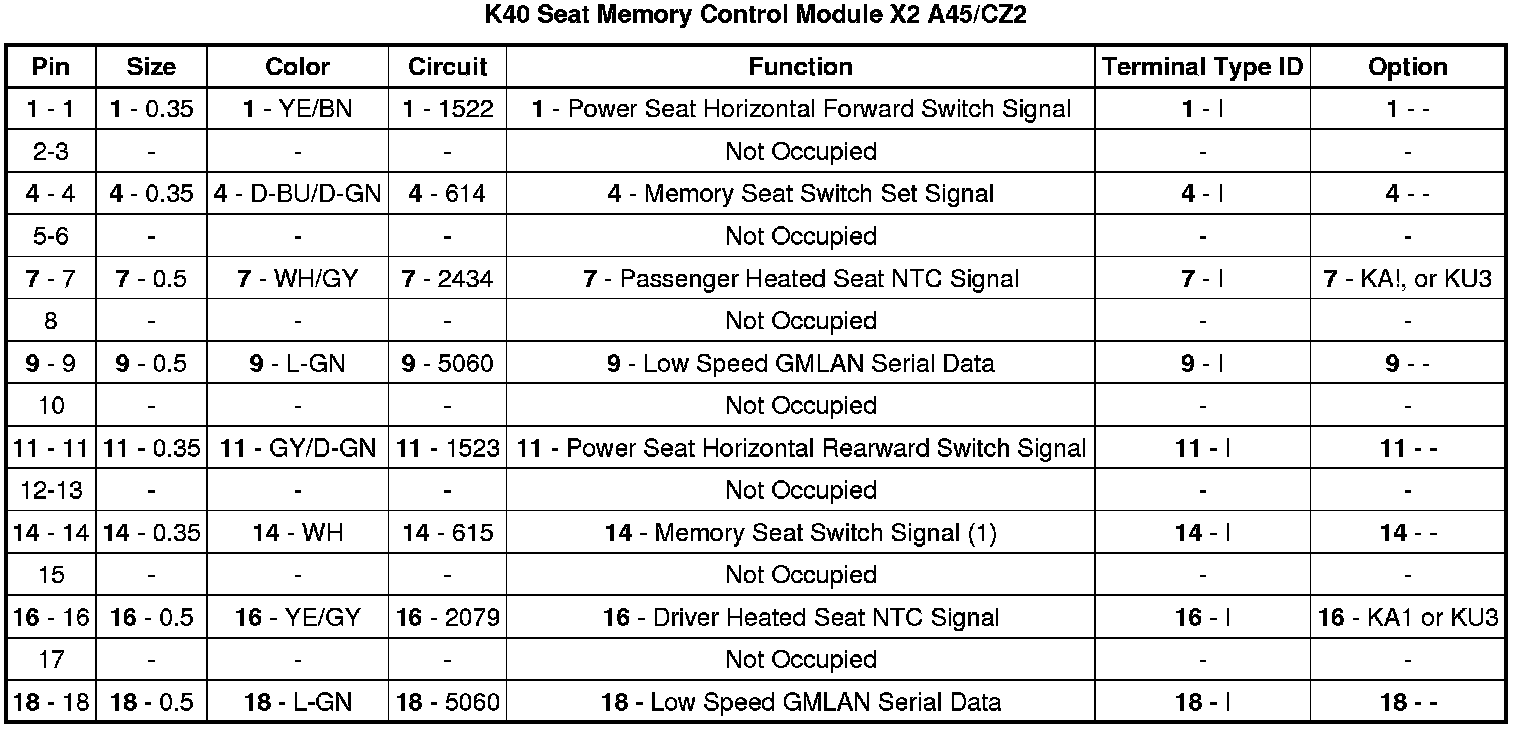

K40 Seat Memory Control Module X2 A45/CZ2
