Vehicle Yaw Sensor Replacement

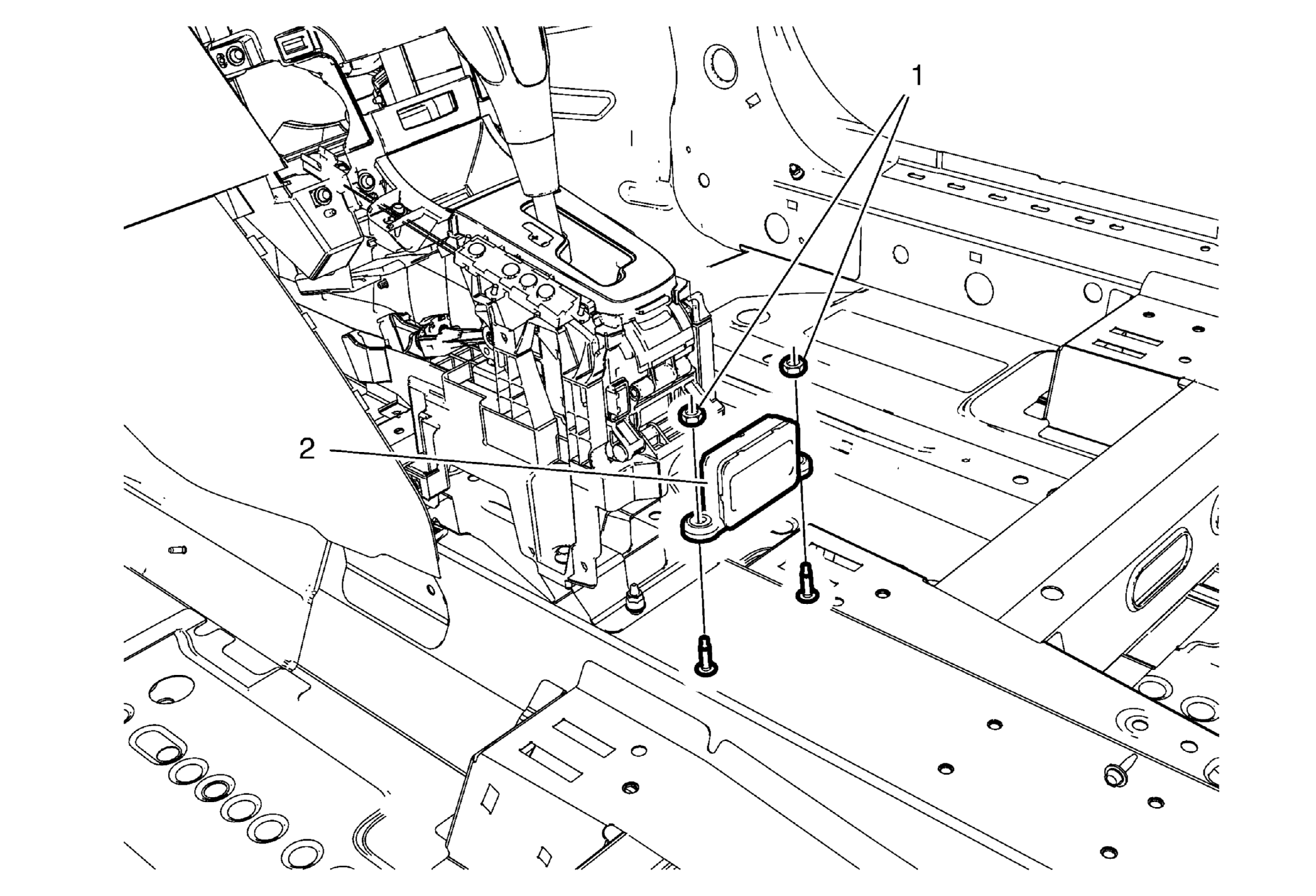

Fig 1: Vehicle Yaw Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement .
1	Vehicle Yaw Sensor Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Vehicle Yaw Sensor Procedure Disconnect the electrical connector. After the installation is complete, perform the yaw sensor learn procedure. Refer to Vehicle Yaw Sensor Learn

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement .

Vehicle Yaw Sensor Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Vehicle Yaw Sensor

Procedure

Disconnect the electrical connector.
After the installation is complete, perform the yaw sensor learn procedure. Refer to Vehicle Yaw Sensor Learn
