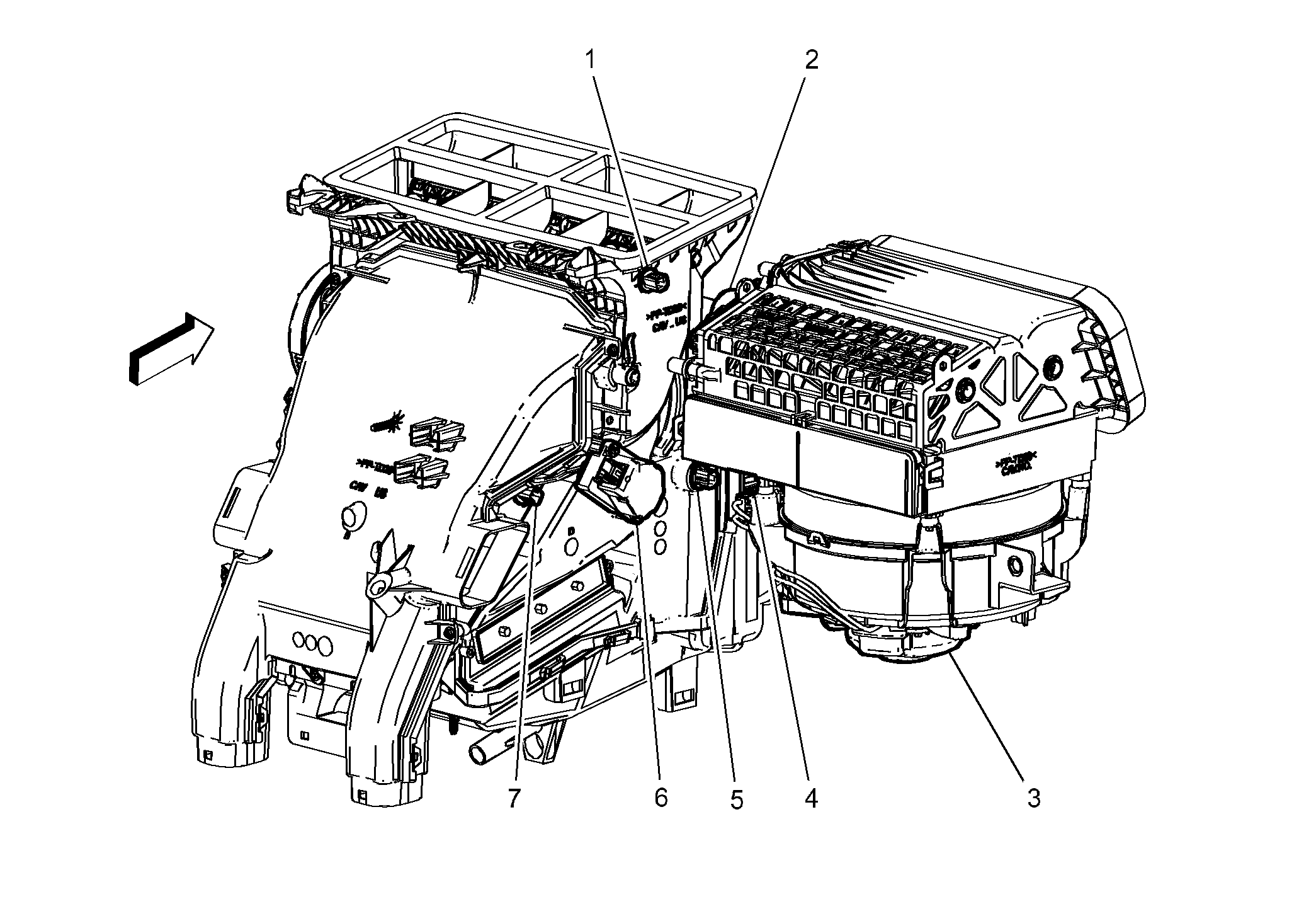

Right HVAC Components
Right HVAC Components
| Items |
|---|
| 1: B7H Air Temperature Sensor - Duct Left Upper (CJ2) |
| 2: M4 Air Inlet Door Actuator (C67 or CJ2) |
| 3: M8 Blower Motor (C67 or CJ2) |
| 4: K8 Blower Motor Control Module K8 Blower Motor Control Module X2 |
| 5: B39 A/C Evaporator Temperature Sensor (C67 or CJ2) |
| 6: M6 Air Temperature Door Actuator (C67 or CJ2) |
| 7: B7J Air Temperature Sensor - Duct Right Upper (CJ2) |
