Front Seat Belt Buckle Replacement

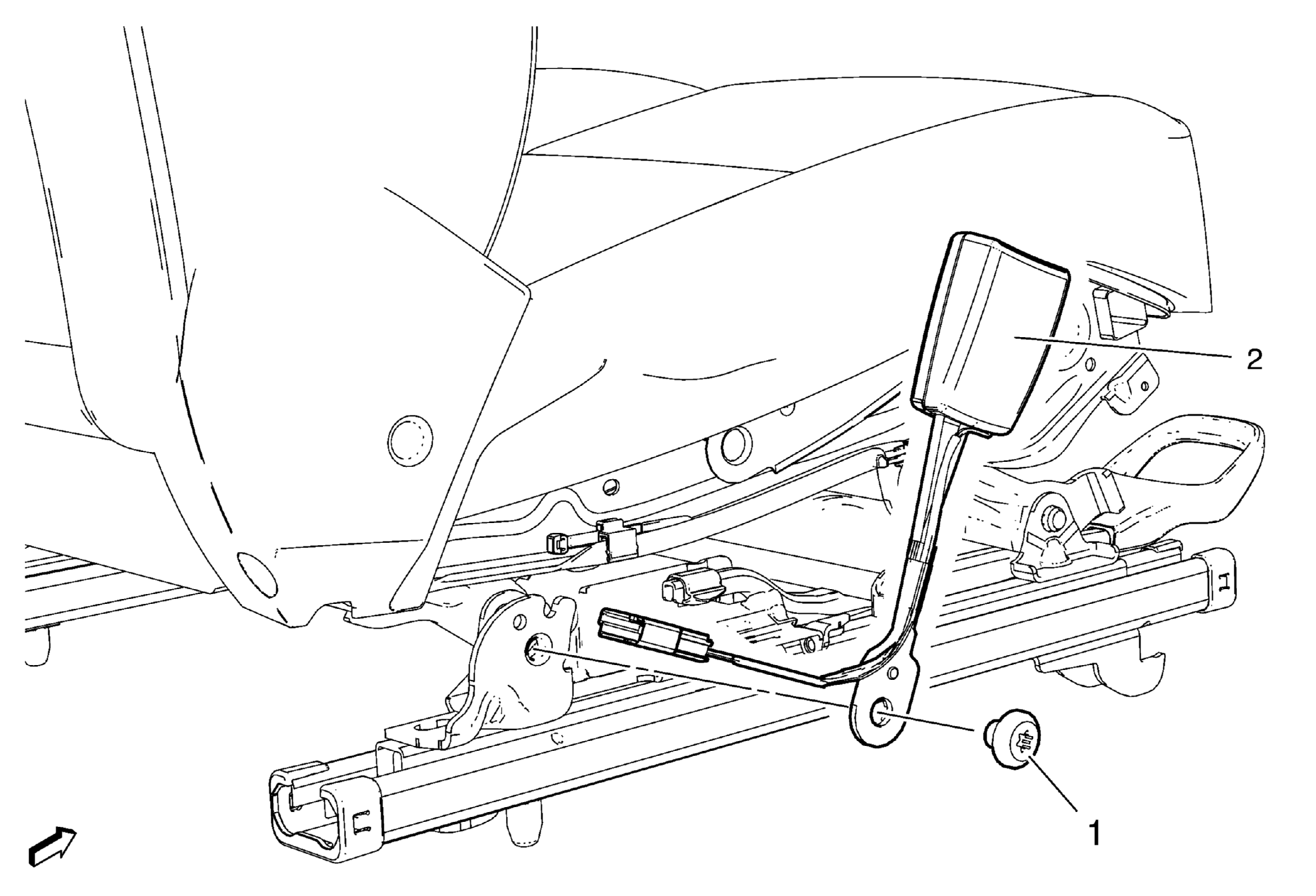

Fig 1: Front Seat Belt Buckle & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures SIR disabling and enabling. Refer to SIR Disabling and Enabling . Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Driver or Passenger Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Procedure Chase the threads using appropriate sized tap to remove any remaining thread locking compound. Fastener is microencapsulated. Install a NEW driver or passenger seat belt buckle bolt. Tighten 45 N.m (33 lb ft)
2	Driver or Passenger Seat Belt Buckle Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

SIR disabling and enabling. Refer to SIR Disabling and Enabling .
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .

Driver or Passenger Seat Belt Buckle Fastener

CAUTION:

Procedure

Chase the threads using appropriate sized tap to remove any remaining thread locking compound.
Fastener is microencapsulated. Install a NEW driver or passenger seat belt buckle bolt.

Tighten
45 N.m (33 lb ft)

Driver or Passenger Seat Belt Buckle
Procedure
Disconnect the electrical connector.
