Steering Gear Heat Shield Replacement

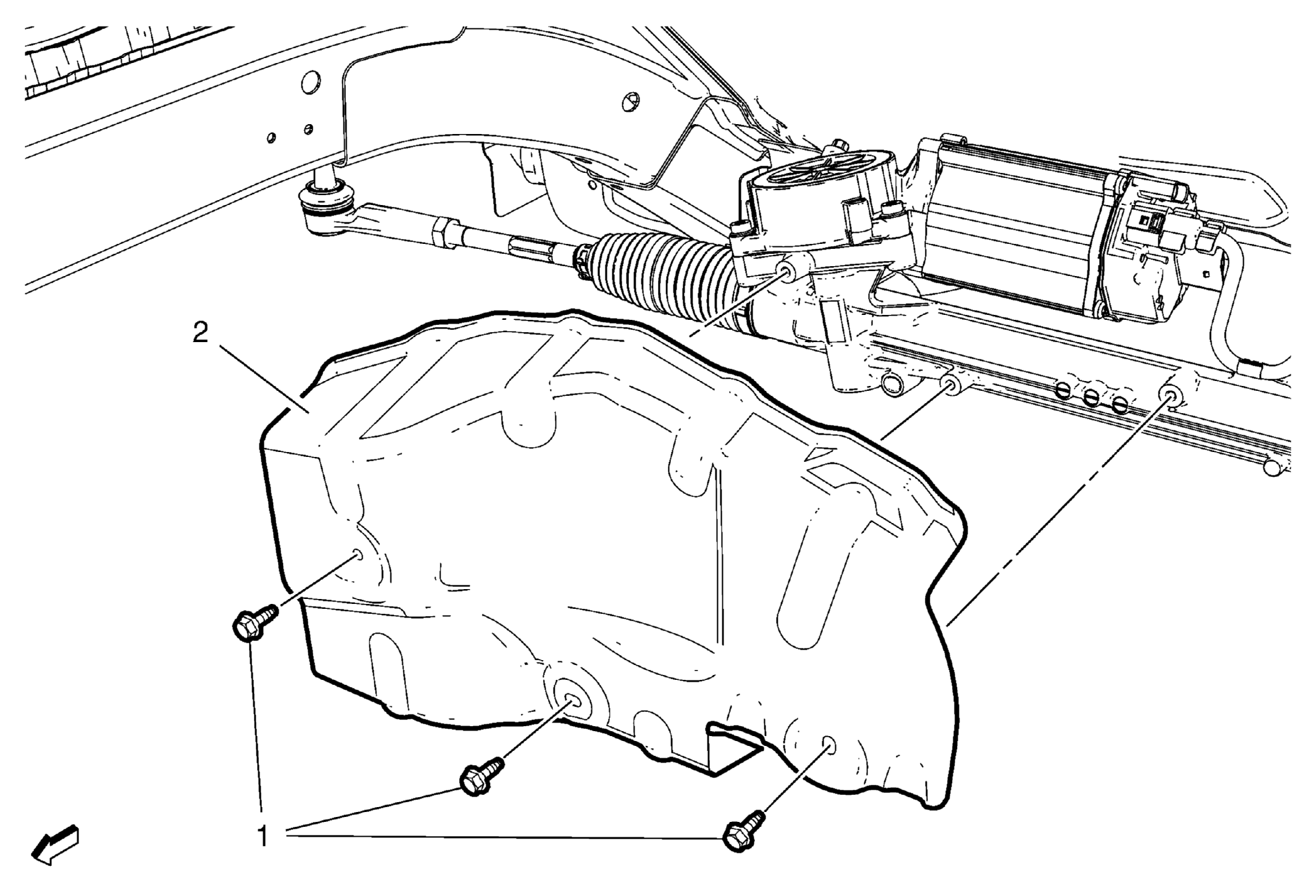

Fig 1: Steering Gear Heat Shield & Bolts
GM2811175Courtesy of GENERAL MOTORS COMPANY
Steering Gear Heat Shield Replacement

Callout Component Name
1 Steering Gear Heat Shield Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Steering Gear Heat Shield
