Side Object Sensor Module - Left (UFT)

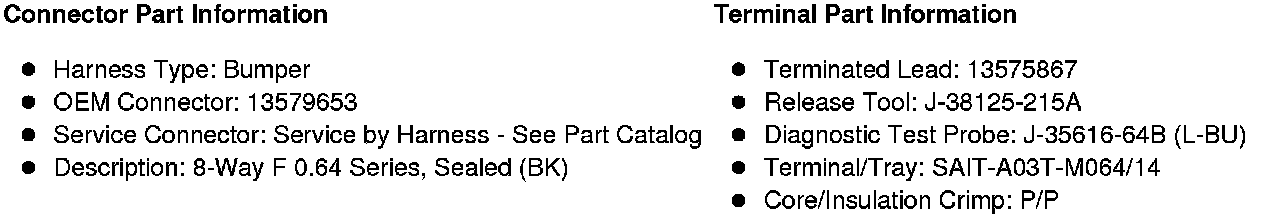

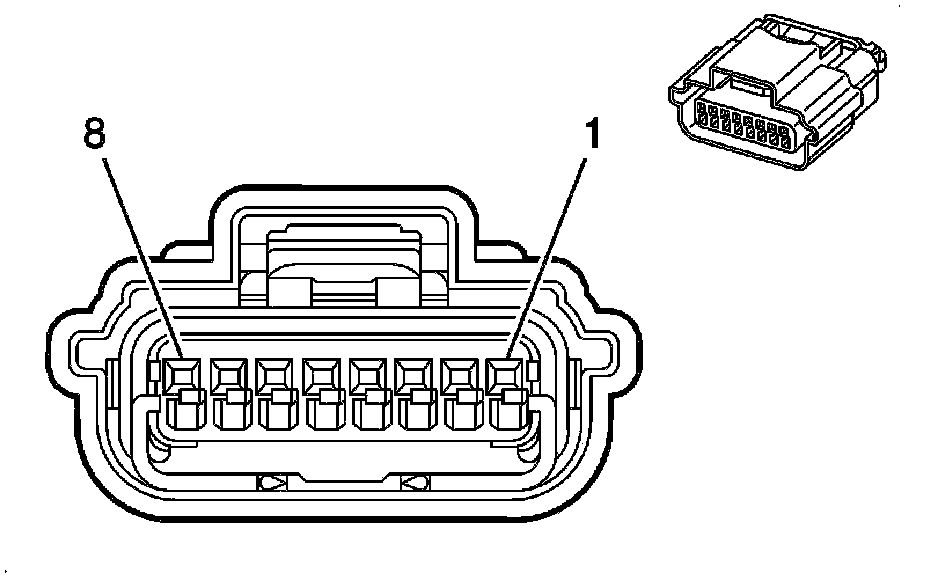

Component Connector End Views

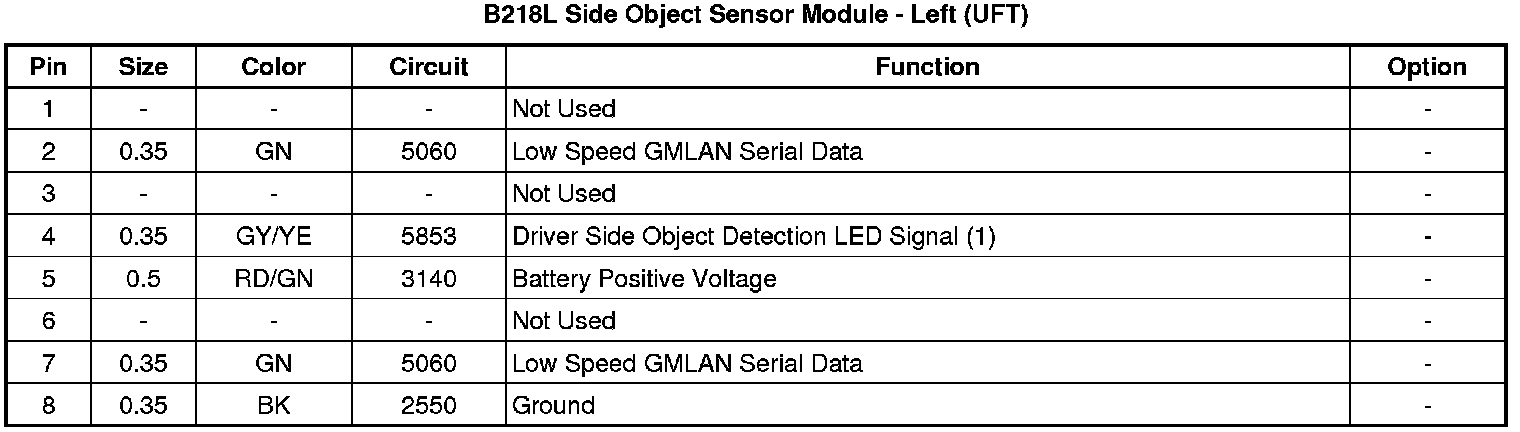

B218L Side Object Sensor Module - Left (UFT)
