Trunk / Liftgate Switch

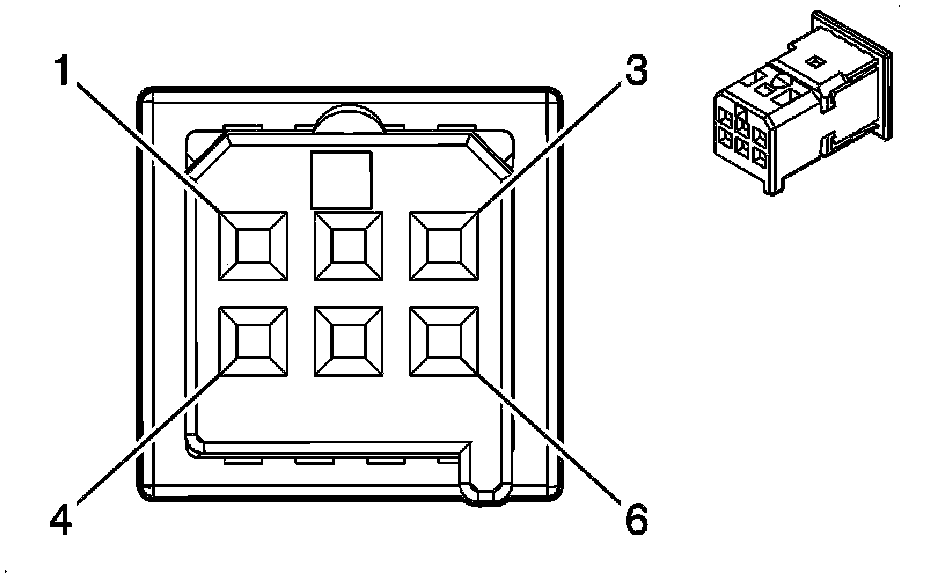

Component Connector End Views

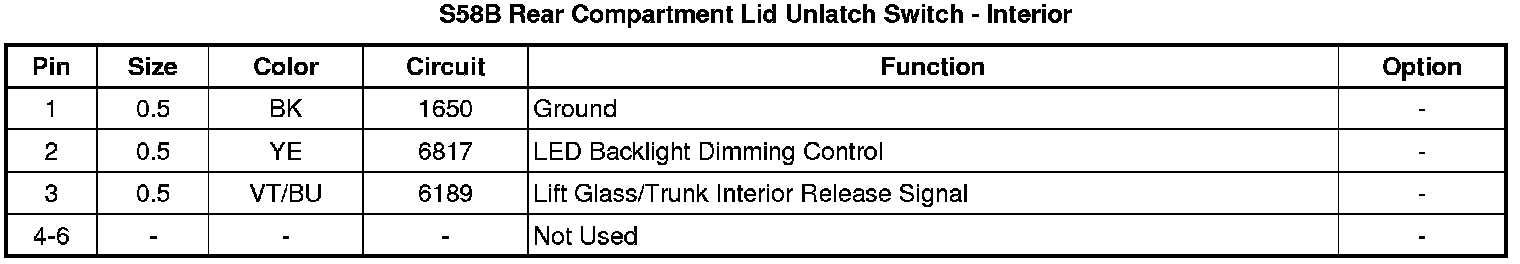

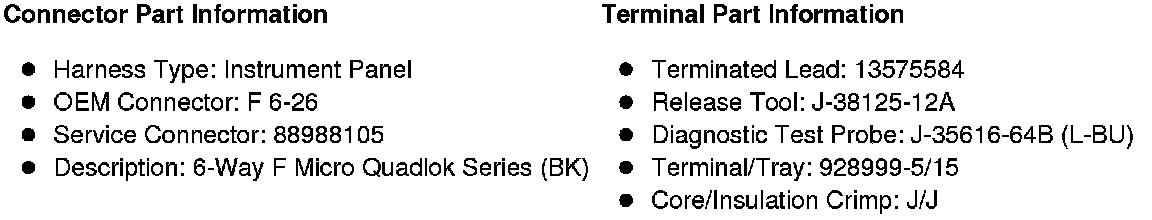

S58B Rear Compartment Lid Unlatch Switch - Interior
