Shift Lock Control System

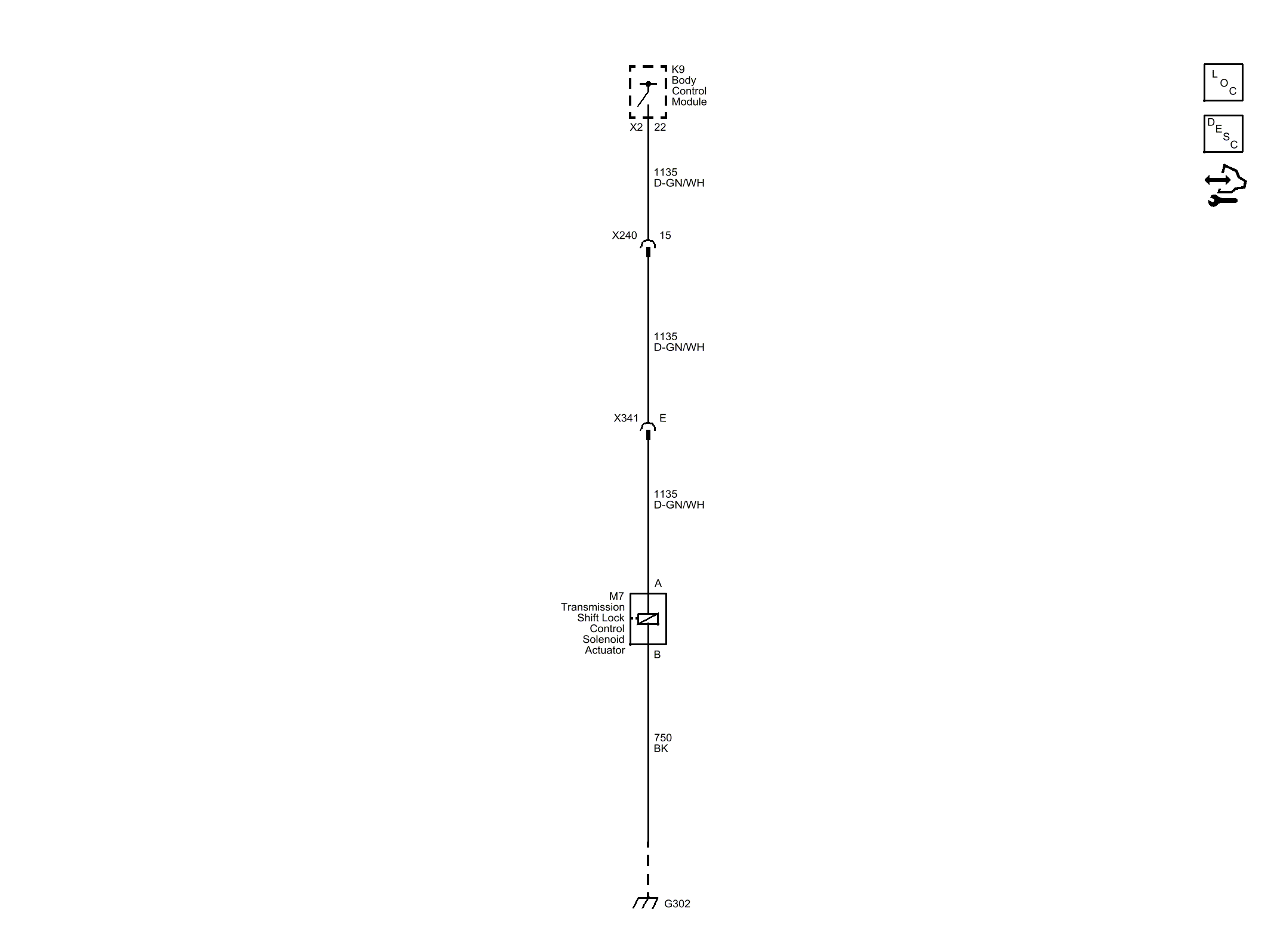

Fig 1: Shift Lock Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
