Outside Rearview Mirror Replacement

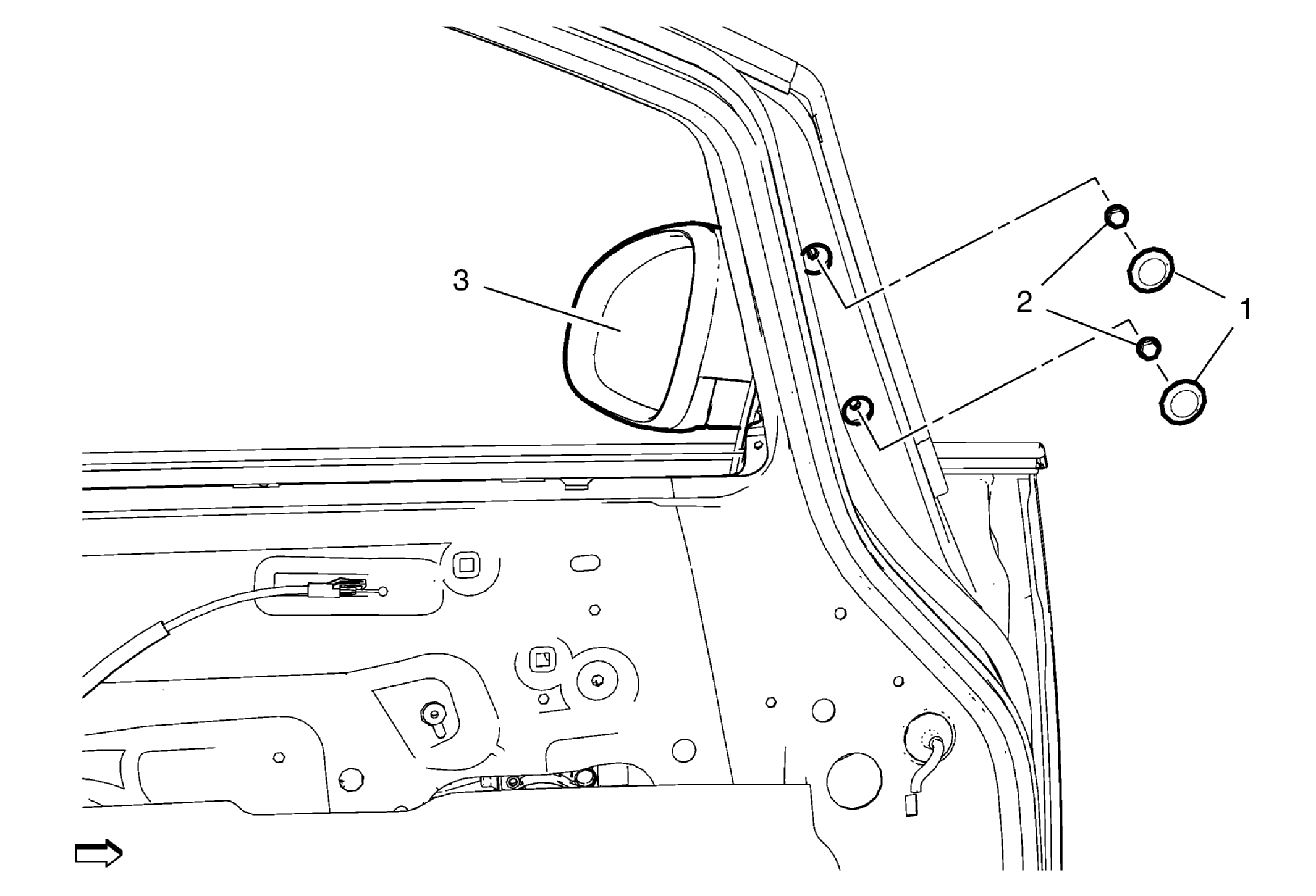

Fig 1: Outside Rearview Mirror & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1	Outside Rearview Mirror Bolt Cap (Qty: 2)
2	Outside Rearview Mirror Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Outside Rearview Mirror Procedure Disconnect electrical connector.
