Steering Angle Sensor Replacement

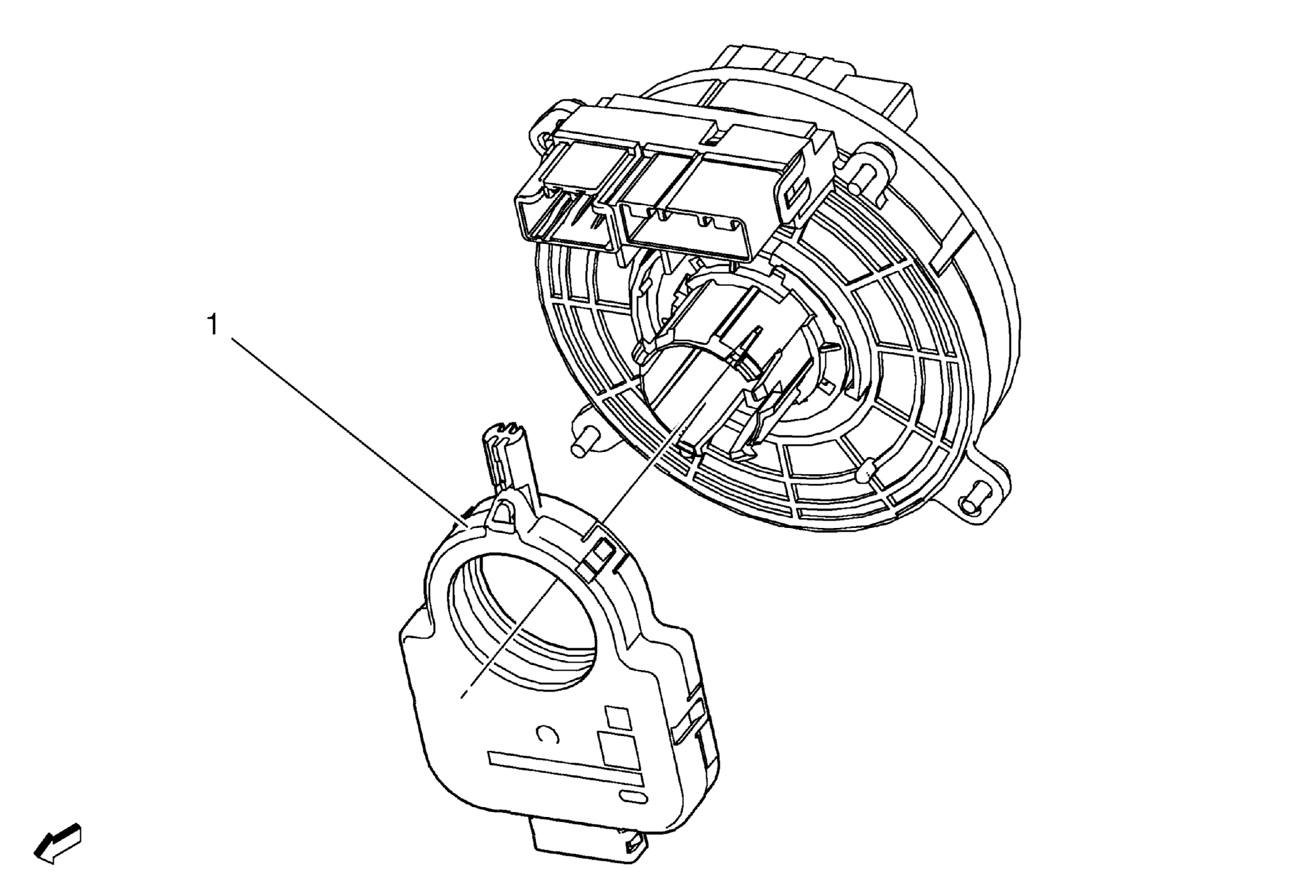

Fig 1: View Of Steering Wheel Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering wheel inflatable restraint module coil. Refer to Steering Wheel Airbag Coil Replacement .
1	Steering Wheel Position Sensor WARNING: Never rotate the steering angle sensor. Rotating the steering angle sensor could limit the operation of the electronic power steering (EPS) system and result in personal injury. Procedure Press in the clip on the inflatable restraint steering wheel module clock-spring coil to remove the sensor. Calibrate the steering angle sensor. Refer to Steering Angle Sensor Centering .

Callout

Component Name

Preliminary Procedures
Remove the steering wheel inflatable restraint module coil. Refer to Steering Wheel Airbag Coil Replacement .

Steering Wheel Position Sensor

WARNING:

Never rotate the steering angle sensor. Rotating the steering angle sensor could limit the operation of the electronic power steering (EPS) system and result in personal injury.

Procedure

Press in the clip on the inflatable restraint steering wheel module clock-spring coil to remove the sensor.
Calibrate the steering angle sensor. Refer to Steering Angle Sensor Centering .
