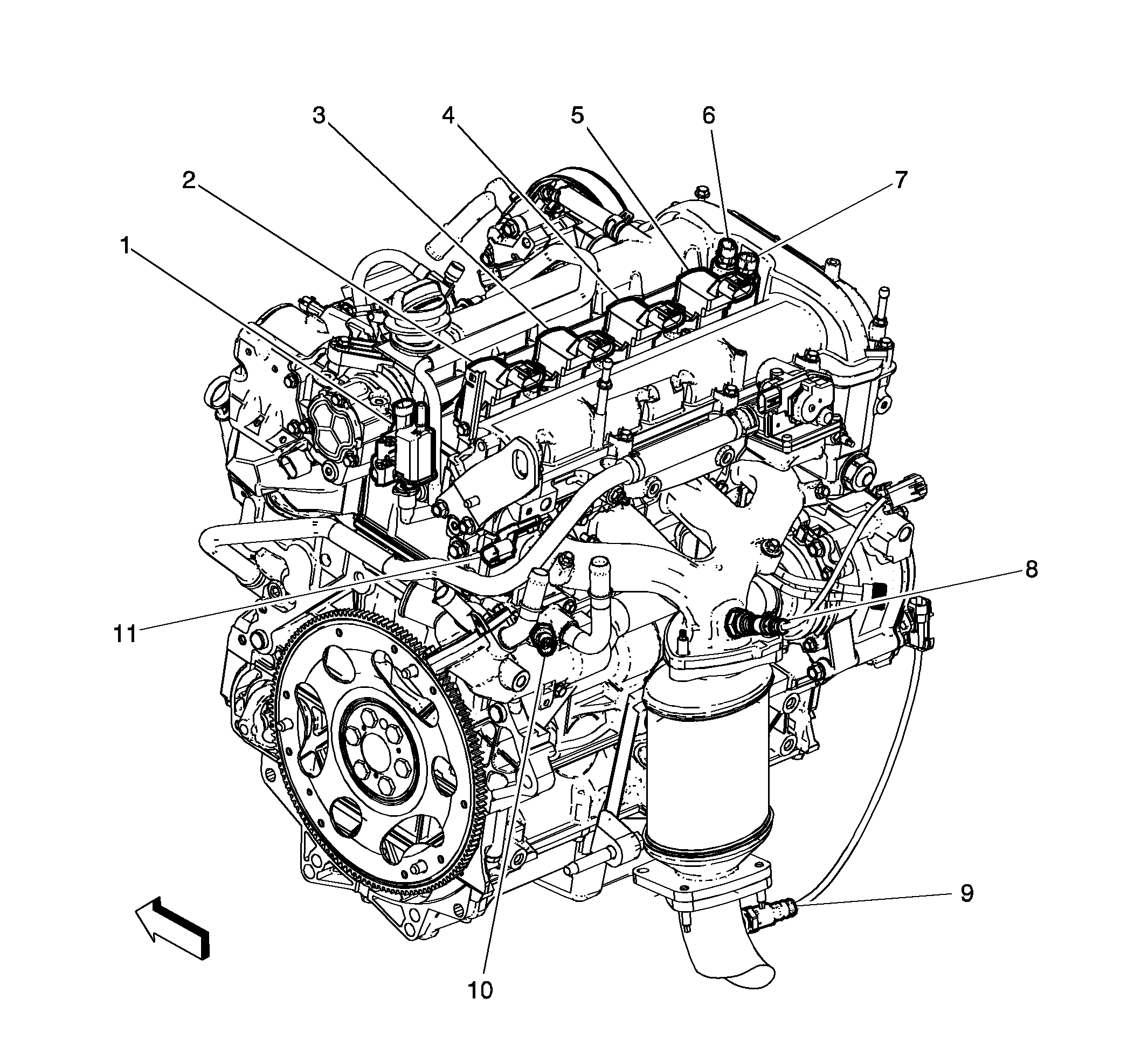

Left Rear of Engine Components
Left Rear of Engine Components
| Items |
|---|
| 1: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 2: T8D Ignition Coil 4 T8D Ignition Coil 4 (LEA)T8D Ignition Coil 4 (LHU) |
| 3: T8C Ignition Coil 3 T8C Ignition Coil 3 (LEA)T8C Ignition Coil 3 (LHU) |
| 4: T8B Ignition Coil 2 T8B Ignition Coil 2 (LEA)T8B Ignition Coil 2 (LHU) |
| 5: T8A Ignition Coil 1 T8A Ignition Coil 1 (LEA)T8A Ignition Coil 1 (LHU) |
| 6: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| 7: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 8: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| 9: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 10: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 11: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
