Installation Procedure
- Place the fuel tank on a jack.

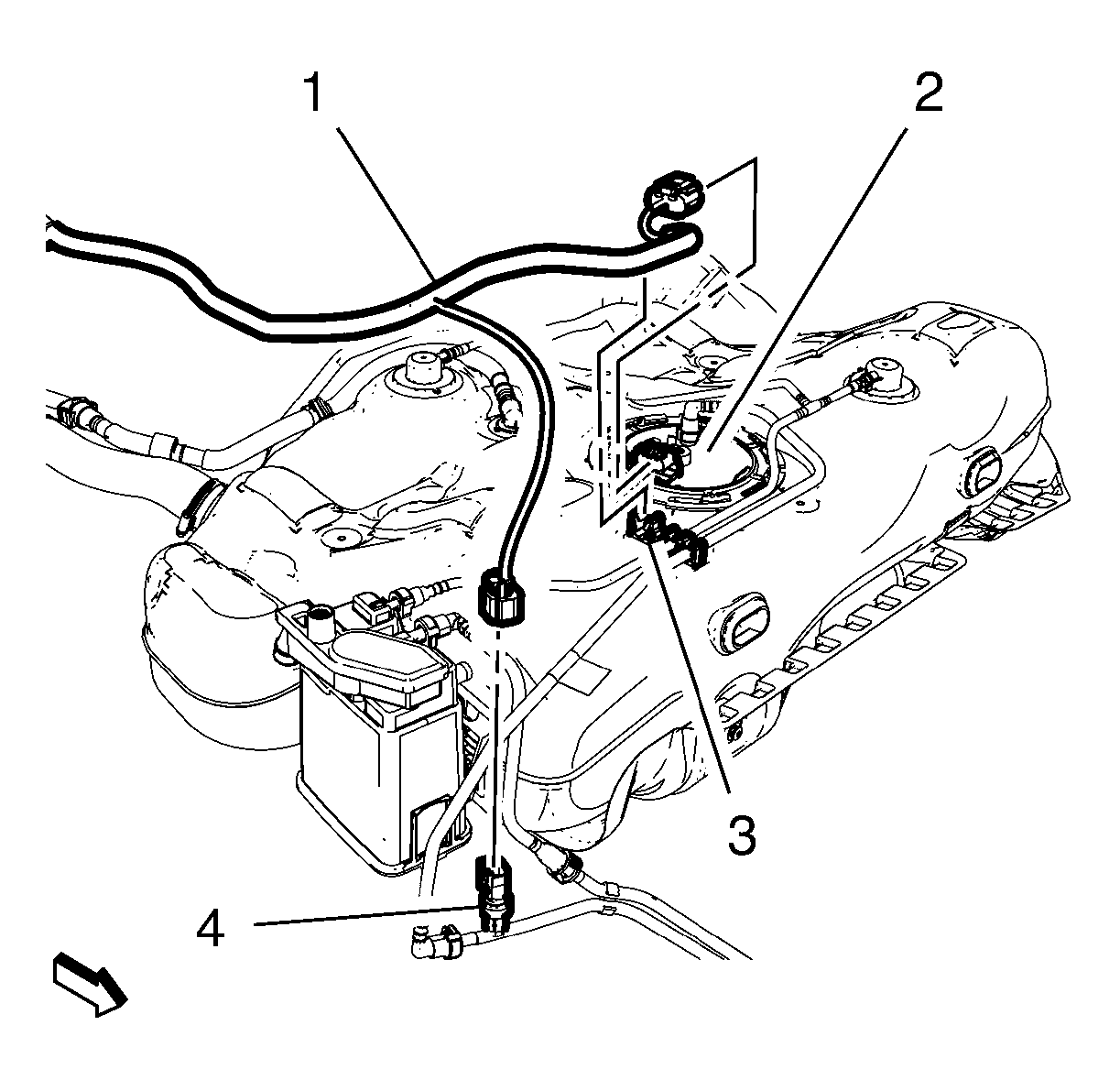

- Extend the jack stepwise, until you can install the fuel tank fuel pump module wiring harness (1).
- Install the evaporative emission canister. Refer to Evaporative Emission Canister Replacement .
- Connect the fuel tank fuel pump module wiring harness (1) to the fuel tank fuel pump module (2).
- Clip the fuel tank fuel pump module wire into the 2 bracket clips (3).
- Install the fuel tank, by extending the jack.

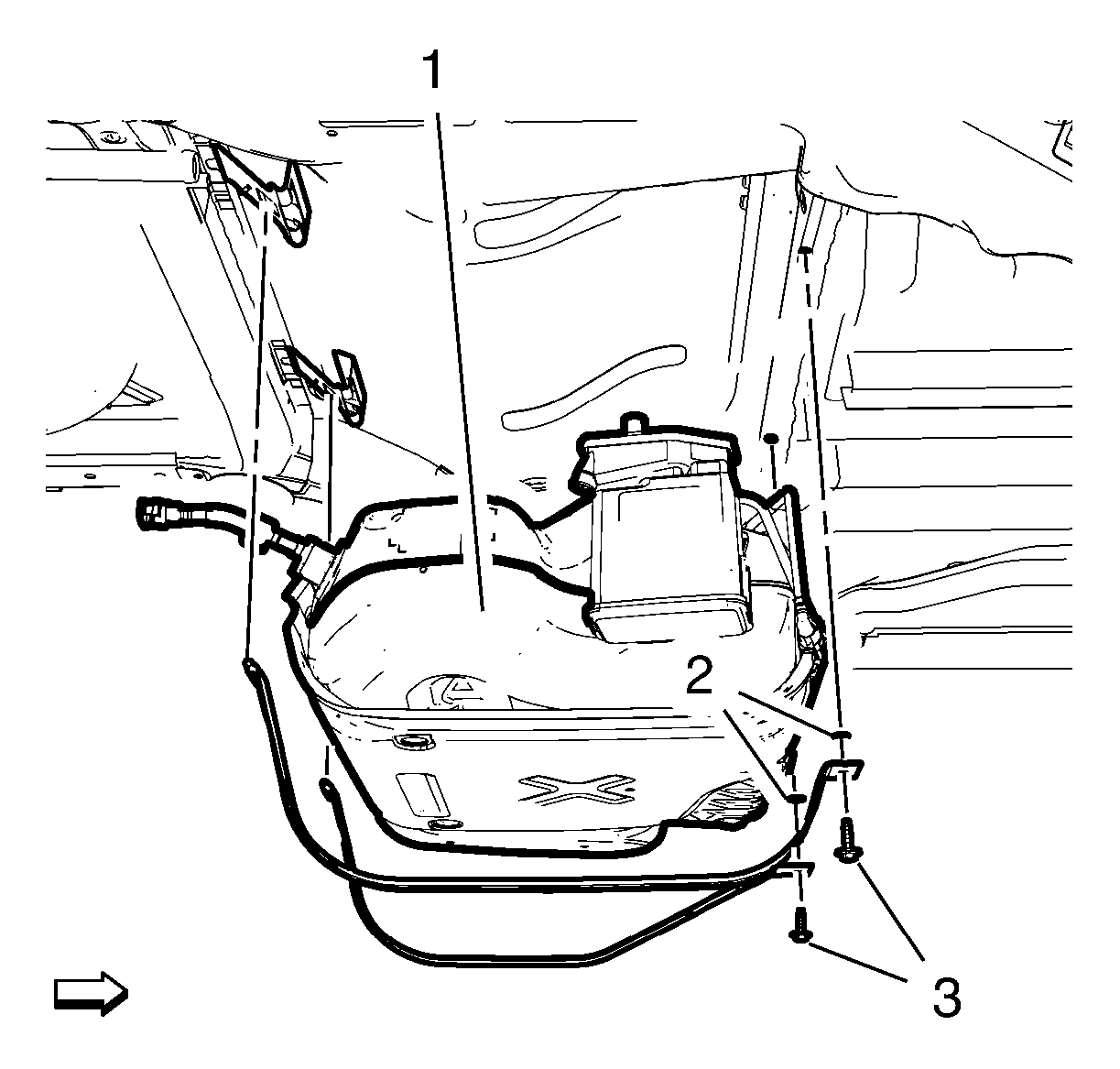

- Install the 2 fuel tank straps (1).
- Install the 2 fuel tank strap bolts (2) and tighten to 20 N.m (15 lb ft).
- Lower and remove the jack.
- Connect the fuel tank filler vent pipe (4). Refer to Fuel Tank Filler Pipe Replacement .
- Install the fuel tank filler hose (3) to the fuel tank filler pipe (1).
- Install the clamp (2).
- Remove the EN-6015 plugs from the emission canister fuel vent pipe and the fuel tank vent pipe.
- Connect the emission canister fuel vent pipe (1) to the fuel tank vent pipe (3). Refer to Plastic Collar Quick Connect Fitting Service .
- Clip the fuel vent pipe (3) into the rear bracket clip (2).
- Remove the EN-6015 plugs from the fuel feed tank pipe and the fuel feed pipe.
- Connect the fuel tank feed pipe connector (1) to the fuel feed pipe (4). Refer to Plastic Collar Quick Connect Fitting Service .
- Clip the fuel feed pipe into the rear bracket clip (3).
- Close the rear bracket clip (3).
- Lower and unsupport the vehicle. Refer to Lifting and Jacking the Vehicle
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
NOTE:
A second technician is required.
CAUTION:
Refer to Fastener Caution .
