Heated Oxygen Sensor Replacement - Sensor 1

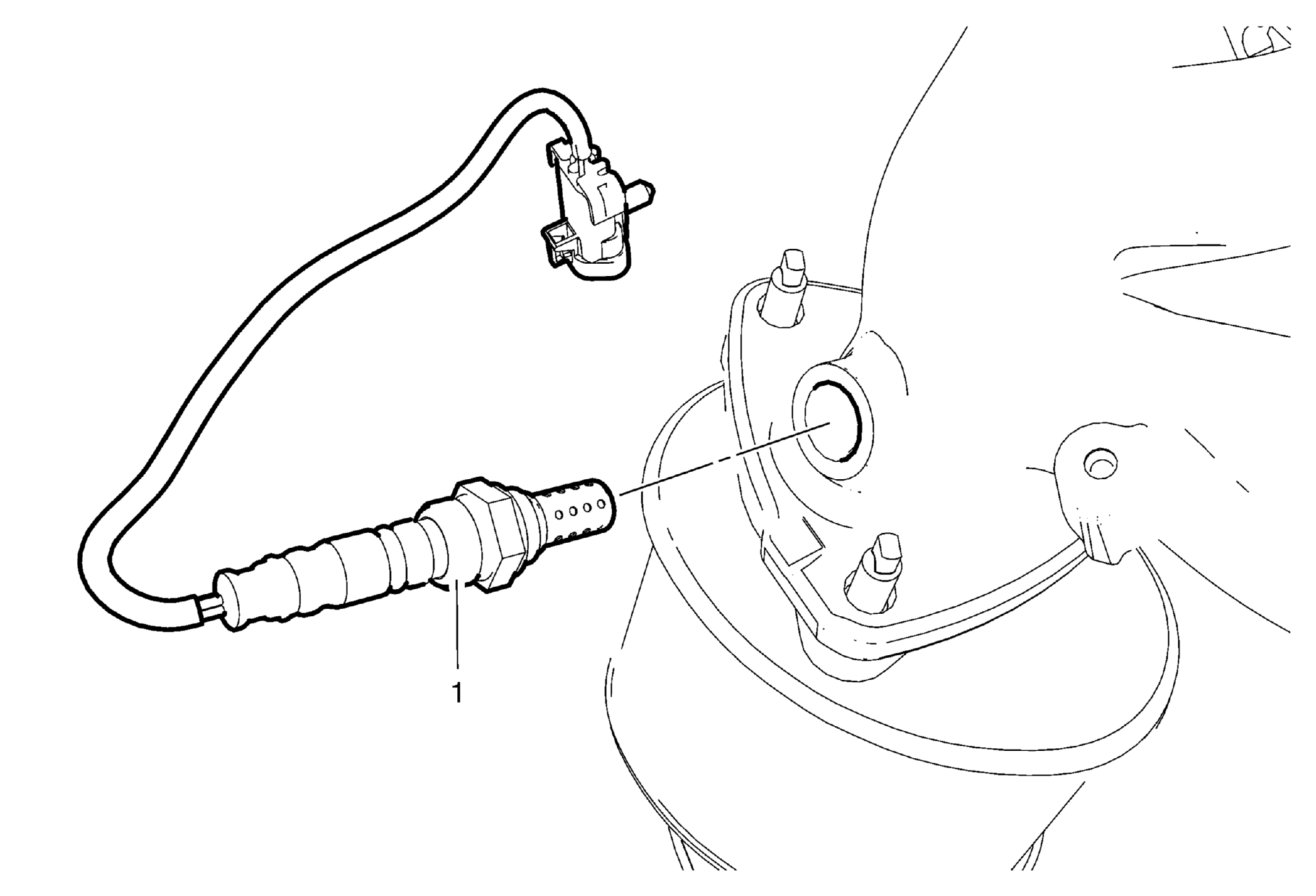

Fig 1: Heated Oxygen Sensor - Sensor 1

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool. Preliminary Procedures Turn ignition off. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Disconnect the heated oxygen sensor 1 wiring harness plug.
1	Heated Oxygen Sensor 1 Procedure After replacement of the heated oxygen sensor, use a scan tool to speed up learn functions. Refer to K20 Engine Control Module: Programming and Setup . CAUTION: Refer to Fastener Caution . Tighten 42 (31 lb ft)

Callout

Component Name

WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

Preliminary Procedures

Heated Oxygen Sensor 1
Procedure
After replacement of the heated oxygen sensor, use a scan tool to speed up learn functions. Refer to K20 Engine Control Module: Programming and Setup .

CAUTION:

Tighten
42 (31 lb ft)
