High Speed Bus 2 Wiring Schematics

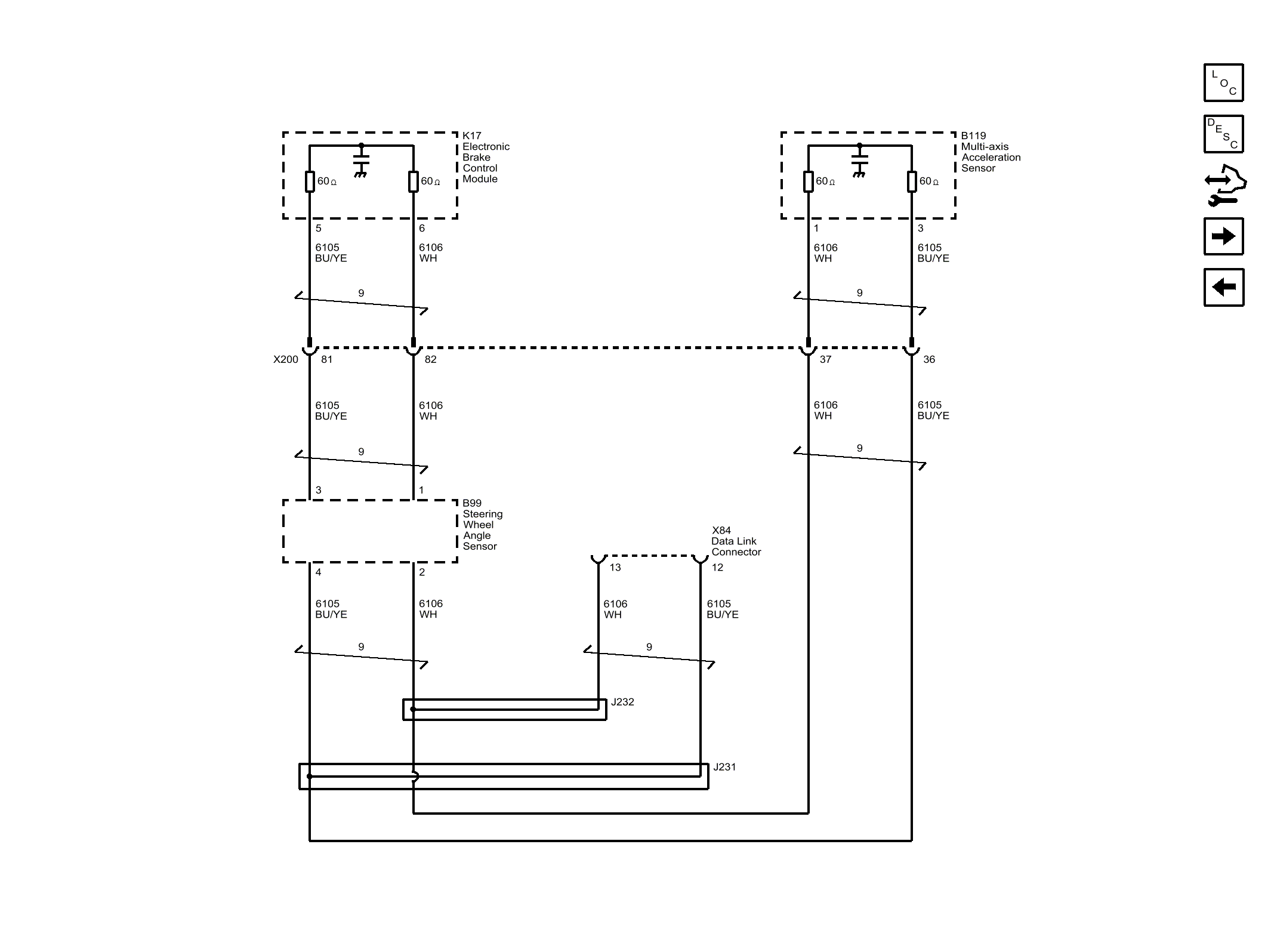

Fig 1: High Speed Bus 2 Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
