Front Seat Belt Guide Adjuster Replacement

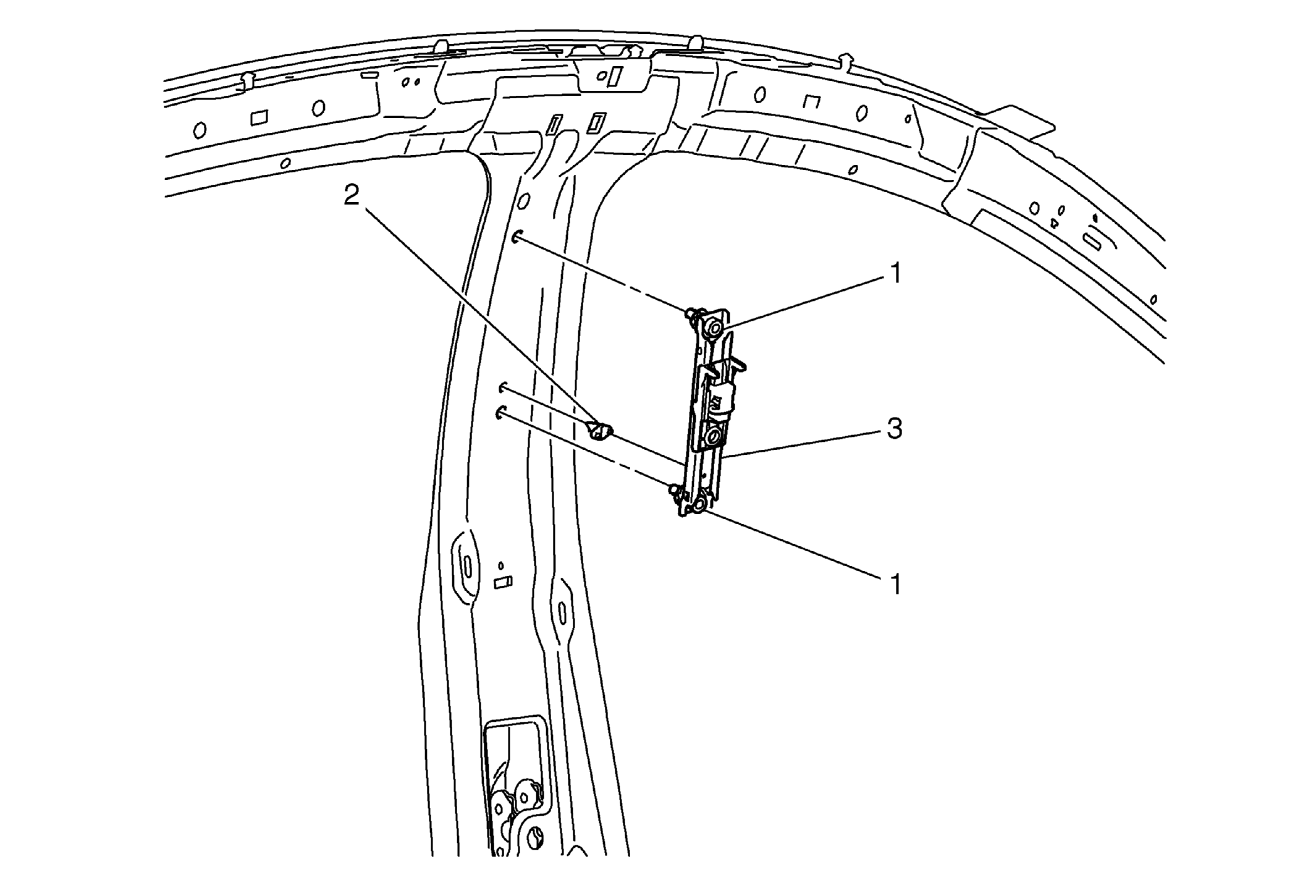

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement .
1	Driver or Passenger Seat Shoulder Belt Guide Adjuster Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Driver or Passenger Seat Shoulder Belt Guide Adjuster Fastener
3	Driver or Passenger Seat Shoulder Belt Guide Adjuster
